01 - Cover Sheet


02 - Control Panel Parts


03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts

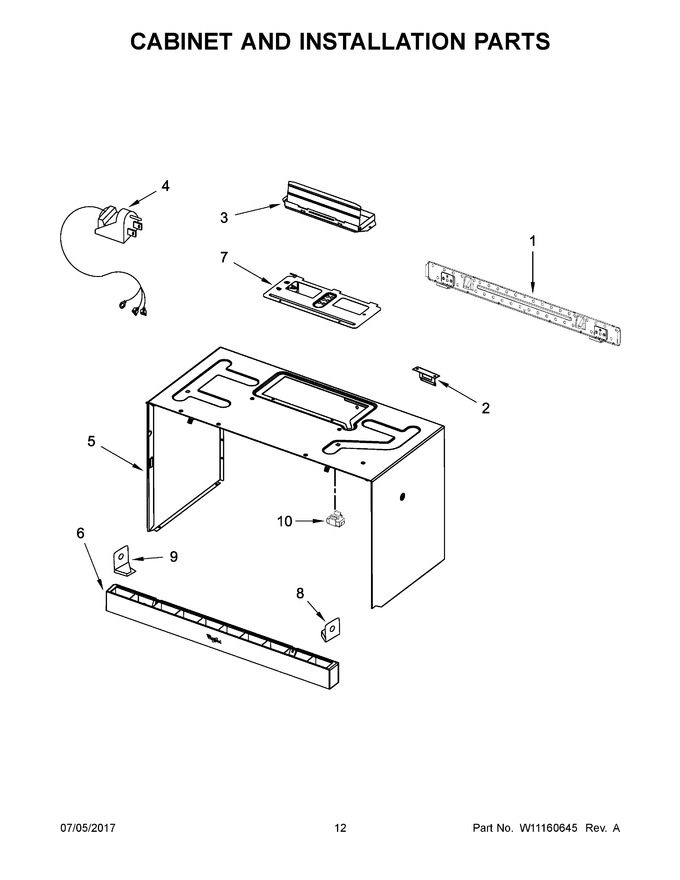

07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11025649		Plate, Mounting   (Replaces: W10440498)			Immediately	$ 24.69
2	8206385		Support, Wire Clip				$ 37.20
3	W10843943		Damper   (Replaces: W10748710)			Immediately	$ 84.59
4	W10708076		Cord, Power   (Replaces: W10654511)				$ 21.56
5	W10883282		Case, Outer (white)   (Replaces: W10838183)				$ 272.24
6	W10468664		Grille, Vent (white)				$ 39.51
7	W10210832		Cover, Hood Fan Motor				$ 6.68
8	W10810989		Vent Holder, Right (black)   (Replaces: W10703283)				$ 10.22
9	W10830163		Vent Holder, Left (black)   (Replaces: W10703285)				$ 14.21
10	W10596040		Assembly, Mounting Nut			Immediately	$ 8.30
5A	W10883284		Case, Outer (black)   (Replaces: W10837530)				$ 272.24
5B	W10846334		Case, Outer (biscuit)		Appelez-nous	-
6A	WPW10468666		Grille, Vent (black)   (Replaces: W10468666)				$ 47.16
6B	W10471684		Grille, Vent (biscuit)		Appelez-nous	-
6C	W10718221		Grille, Vent (stainless)				$ 136.48
8A	W10703282		Vent Holder, Right (stainless)				$ 11.00
9A	W11026306		Vent Holder, Left (stainless)   (Replaces: W10703284)			Immediately	$ 7.55
NI	W10899090		Miscellaneous Parts, Harness, Main   (Replaces: W10907918)		Appelez-nous	-
NI	W10543253		Miscellaneous Parts, Harness, Lamp And Turntable				$ 25.54
NI	W10498567		Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer			Immediately	$ 24.55
NI	W10539840		Miscellaneous Parts, Harness, Pcba Ground Wire				$ 25.08
NI	W10821385		Miscellaneous Parts, Hardware, Installation			Immediately	$ 103.72
NI	W10190018		Miscellaneous Parts, Template, Upper (english & French)			Immediately	$ 7.55
NI	WP8169704		Miscellaneous Parts, 1/4-20x3" Panhead Screw   (Replaces: 8169704)			Immediately	$ 13.35
