Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10806908 Installation Instructions Appelez-nous -
2 W11806566 Arm, Hinge (left Hand)   (Replaces: W10274922) In-Stock Immediately $ 71.77

3 W10850371 Stiffener, Door   (Replaces: W10803537) In-Stock Immediately $ 32.88

4 W10814587 Panel, Front (includes 6, 7, 9, 15 & 16) (black)   (Replaces: W10644290) Special Order $ 384.20

5 WPW10526114 Access Panel (black)   (Replaces: W10526114) In-Stock Immediately $ 149.53

6 W11178521 Nameplate   (Replaces: W10884775) In-Stock Immediately $ 63.13

7 W11105961 Vent (black) Appelez-nous -
8 WPW10503548 Fastener (black)   (Replaces: W10503548) In-Stock Immediately $ 30.39

9 W10500331 Light, Pipe Special Order $ 33.41

10 WPW10109200 Screw   (Replaces: 489470) In-Stock Immediately $ 8.80

11 W11126003 Insulation, Front Panel   (Replaces: W10315897) In-Stock Immediately $ 65.25

12 W10873050 Handle Assembly (black)   (Replaces: W10685632) Special Order $ 177.23

13 W10831329 Insulation, Four Layer   (Replaces: W10518815) In-Stock Immediately $ 43.30

14 W10907991 Screw, Set   (Replaces: W10693137) Special Order $ 7.55

15 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

16 W11157086 Stud, Mounting   (Replaces: W11049903) In-Stock Immediately $ 8.87

17 WP8268961 Sleeve, Friction   (Replaces: 8268961) In-Stock Immediately $ 5.93

12A W10873052 Handle Assembly (white)   (Replaces: W10685633) Special Order $ 171.23

12B W11028176 Handle Assembly (stainless)   (Replaces: W10786151) Special Order $ 118.35

1A W10864194 Energy Guide Appelez-nous -
1B W10889568 Use & Care Guide Appelez-nous -
1C W10904612 Tech Sheet Appelez-nous -
2A W11613572 Arm, Hinge (right Hand)   (Replaces: W10274921) In-Stock Immediately $ 83.93

4A W10644291 Panel, Front (includes 6, 7, 9, 15 & 16) (white) Appelez-nous -
4B WPW10644292 Panel, Front (includes 6, 7, 9, 15 & 16) (stainless)   (Replaces: W10644292) Special Order $ 399.57

5A WPW10526115 Access Panel (white)   (Replaces: W10526115) Special Order $ 175.17

7A W11105960 Vent (white) Appelez-nous -
7B W11105958 Vent (silver) Appelez-nous -
8A WPW10503549 Fastener (white)   (Replaces: W10503549) In-Stock Immediately $ 7.77


    View Diagram in Separate Window     Print Icon   Print Part List

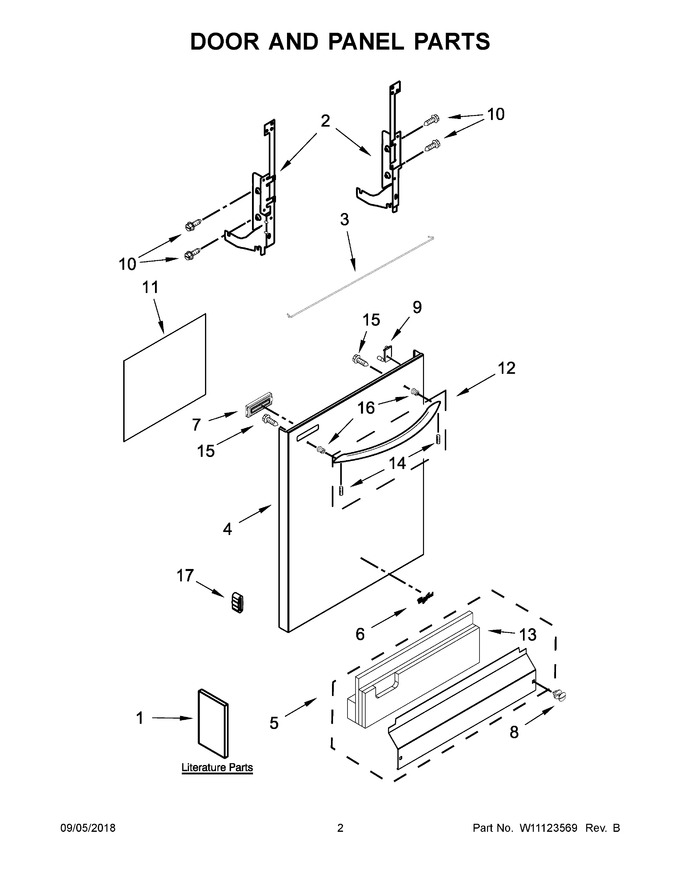

Diagram for WDT720PADH3
