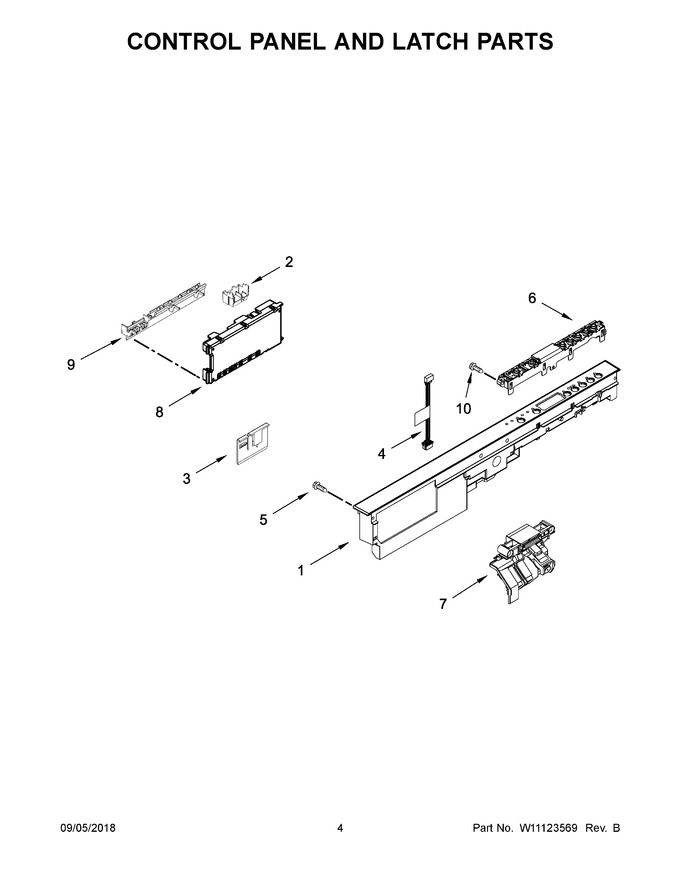

03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11124699		Console Assembly (black)   (Replaces: W11082318)		Appelez-nous	-
2	W11305293		Box, Connector   (Replaces: W10825638)			Immediately	$ 236.98
3	W11256107		Clip, Control   (Replaces: W11233967)				$ 23.27
4	W11028004		Jumper, 4-wire   (Replaces: W10566903)				$ 22.37
5	W11232015		Screw   (Replaces: W10648588)			Immediately	$ 14.73
6	W10918484		Housing Assembly, User Interface (includes Item 4)				$ 211.23
7	WPW10653840		Latch Assembly (includes Switch)   (Replaces: W10574864)			Immediately	$ 34.18
8	W11306302		Control, Electronic   (Replaces: W11170182)			Immediately	$ 327.40
9	W11305293		Brace, Connector   (Replaces: W10825369)			Immediately	$ 236.98
10	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 8.02
1A	W11124700		Console Assembly (white)   (Replaces: W11082319)		Appelez-nous	-
1B	W11124701		Console Assembly (grey)   (Replaces: W11082320)				$ 429.51
