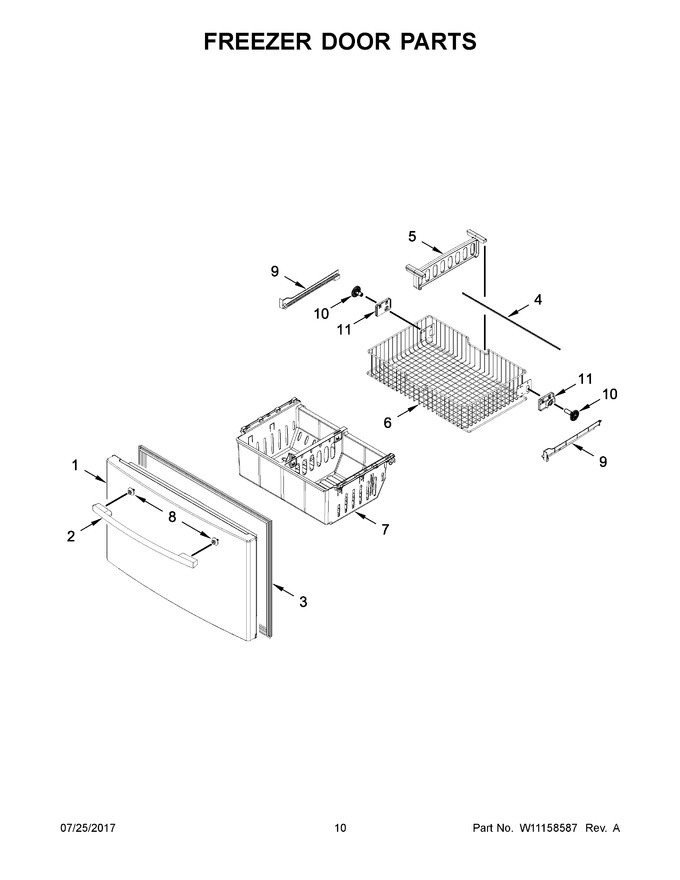

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12977863WQ		Door, Freezer (white)   (Replaces: 12977863W)				$ 889.81
2	W10223022K		Handle, Door (white)				$ 80.97
3	WPW10443321		Gasket, Door (white)   (Replaces: W10443321)				$ 359.84
4	W11173556		Shaft, Rack   (Replaces: W10802333)				$ 32.38
5	W10146439		Divider, Upper Basket				$ 32.66
6	W11218042		Basket, Upper   (Replaces: W10348249)				$ 203.43
7	WPW10293682		Bin, Lower   (Replaces: W10293682)				$ 181.18
8	WPW10288153		Screw   (Replaces: W10288153)			Immediately	$ 9.65
9	W11489993		Rack, Side (left Hand)   (Replaces: W10516603)				$ 23.46
10	WPW10474716		Spur, Gear (left Hand)   (Replaces: W10474716)			Immediately	$ 32.42
11	W10348259		Mount, Gear (left Hand)				$ 89.87
10A	WPW10474715		Spur, Gear (right Hand)   (Replaces: W10474715)			Immediately	$ 32.76
11A	W10348260		Mount, Gear (right Hand)				$ 89.90
1A	12977863BQ		Door, Freezer (black)   (Replaces: 12977863B)				$ 907.50
2A	WPW10223023K		Handle, Door (black)   (Replaces: W10223023K)				$ 200.66
3A	WPW10436253		Gasket, Door (black)   (Replaces: W10436253)				$ 360.89
9A	W11489994		Rack, Side (right Hand)   (Replaces: W10516602)				$ 23.46

    View Diagram in Separate Window       Print Part List
