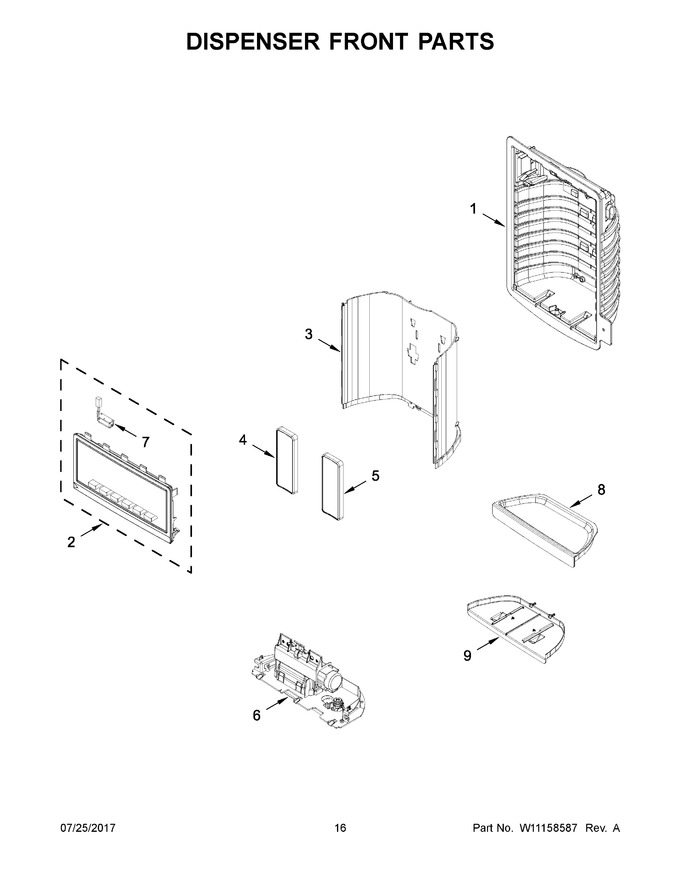

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11284720		Assembly, User Interface   (Replaces: W11106026)				$ 366.66
3	W11045975		Wall, Dispenser False (white)		Appelez-nous	-
4	W10334795		Pad, Ice (white)		Appelez-nous	-
5	W10334819		Pad, Water (white)		Appelez-nous	-
6	WPW10353552		Assembly, Separator   (Replaces: W10353552)				$ 166.29
7	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45
8	W11045970		Tray, Dispenser (white)				$ 65.93
9	W10267860		Tray, Dispenser Slide (white)		Appelez-nous	-
3A	W11045976		Wall, Dispenser False (black)				$ 43.18
4A	W10368729		Pad, Ice (black)   (Replaces: W10334798)				$ 308.78
5A	W10368729		Pad, Water (black)   (Replaces: W10334822)				$ 308.78
8A	W11045971		Tray, Dispenser (black)				$ 65.90
9A	W10267861		Tray, Dispenser Slide (black)				$ 74.39

    View Diagram in Separate Window       Print Part List
