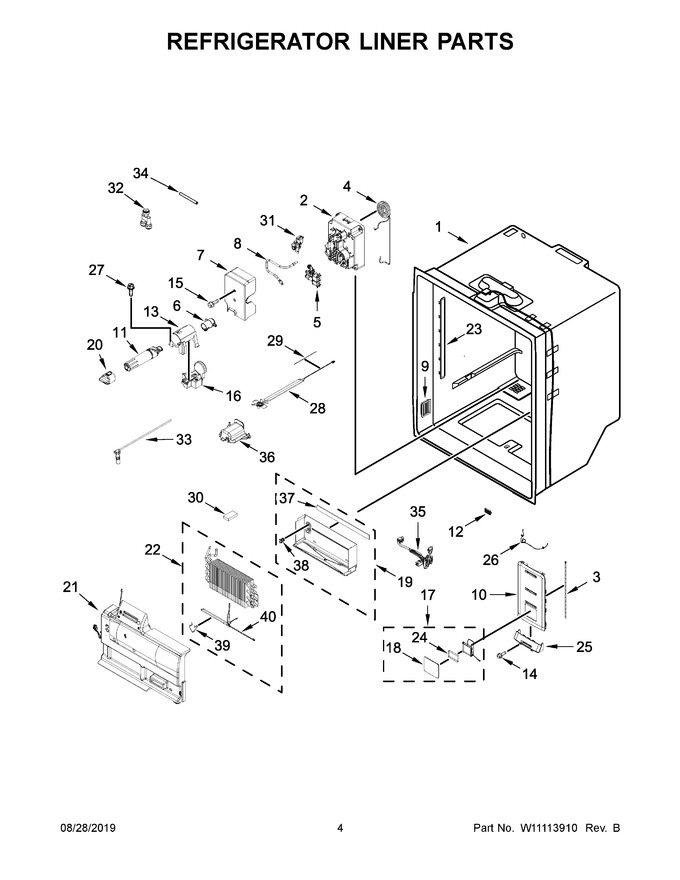

03 - Refrigerator Liner Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Unit Parts


08 - Shelf Parts


09 - Dispenser Front Parts


10 - Icemaker And Ice Container Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	W10708473		Housing, Water Tank				$ 107.56
3	W10887788		Strip, Led   (Replaces: W10786645)				$ 212.46
4	W10878020		Reservoir, Water (also Order Wire Tie Part W10838005 Qty 2)		Appelez-nous	-
5	W11535162		Valve, Dual Water   (Replaces: W10908836)			Immediately	$ 140.71
6	W11109049		Housing, Water Filter		Appelez-nous	-
7	W10900011		Cover, Water Valve				$ 116.98
8	W11109050		Tube, Water Filter   (Replaces: W10846082)		Appelez-nous	-
9	W10815965		Cover, Cooling Duct				$ 110.46
10	W11259417		Cover, Tower				$ 303.05
11	EDR2RXD1B		Filter, Water   (Replaces: W10680605)			Immediately	$ 49.99
12	W10311524		Filter, Air   (Replaces: W10315189)			Immediately	$ 14.34
13	W11189600		Bracket, Filter   (Replaces: W10708474)				$ 74.42
14	W10119266		Screw				$ 12.71
15	WP67006908		Screw   (Replaces: 12990518)			Immediately	$ 8.78
16	W11099735		Insulation, Under Filter   (Replaces: W10850813)		Appelez-nous	-
17	W10887778		Assembly, Air Filter   (Replaces: W10817432)				$ 54.68
18	W10887778		Cover, Air Filter   (Replaces: W10856502)				$ 54.68
19	W11090564		Assembly, Heat Shield				$ 70.51
20	W11220375		Cap, Filter   (Replaces: W10813883)			Immediately	$ 48.30
21	W10890072		Assembly, Evaporator Cover (includes Fan Motor, Wire Assembly And Thermistor)		Appelez-nous	-
22	W11291123		Assembly, Evaporator   (Replaces: W11130330)			Immediately	$ 366.49
23	W11115320		Strip, Led   (Replaces: W10906201)				$ 188.23
24	W10673897		Insulator, Foam   (Replaces: W10831305)				$ 32.53
25	W10815960		Base, Tower Cover				$ 207.69
26	W10848895		Harness, Air Tower Jumper			Immediately	$ 158.50
27	WP489474		Screw   (Replaces: 12990501)			Immediately	$ 8.55
28	W11099570		Assembly, Filter Heater   (Replaces: W10877454)		Appelez-nous	-
29	W10910632		Gasket, Sealing   (Replaces: W10901792)		Appelez-nous	-
30	W10818463		Gasket, Evaporator Air Dam				$ 27.75
31	W10873093		Valve, Water   (Replaces: W10853039)				$ 307.84
32	W11209438		Connector, Water Tube   (Replaces: W10722983)				$ 35.72
33	W10687070		Tube, Icemaker Fill		Appelez-nous	-
34	W10764297		Tube, Valve Inlet				$ 32.19
35	W11396537		Assembly, Manifold Jumper Wire   (Replaces: W10906507)				$ 132.15
36	W10887962		Cover, Fill Tube		Appelez-nous	-
37	W11159756		Gasket, Heat Shield   (Replaces: W10921470)		Appelez-nous	-
38	10623002		Clip, Evaporator				$ 12.11
39	W10909562		Clip, Evaporator Heater				$ 24.54
40	W11291124		Heater, Defrost   (Replaces: W11127384)			Immediately	$ 158.89
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10871595		Assembly, Valve Wire		Appelez-nous	-
