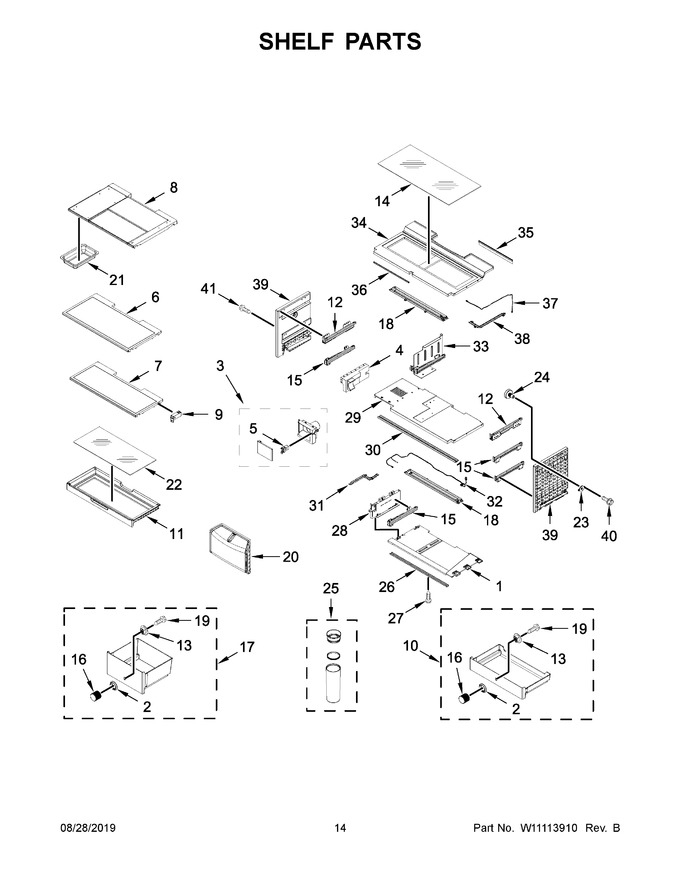

08 - Shelf Parts


09 - Dispenser Front Parts


10 - Icemaker And Ice Container Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10794563		Base, Pantry				$ 161.13
2	W10696184		Ring, Handle		Appelez-nous	-
3	W11690901		Assembly, Filter Door   (Replaces: W11347069)			Immediately	$ 128.46
4	W11084829		Insulation, Filter Housing   (Replaces: W10792132)		Appelez-nous	-
5	WP2223877		Latch, Push   (Replaces: 2223877)				$ 120.84
6	W10887818		Assembly, 15" Full Shelf   (Replaces: W10793467)				$ 339.50
7	W11284453		Assembly, 12" Full Shelf   (Replaces: W11116719)			Immediately	$ 287.61
8	W10794646		Assembly, Tuck Shelf		Appelez-nous	-
9	W11226828		Assembly, Block (front Left/back Right)   (Replaces: W10817922)			Immediately	$ 15.57
10	W11115323		Pan, Pantry   (Replaces: W10898655)				$ 275.69
11	W11563405		Assembly, Platter Shelf   (Replaces: W11082108)				$ 393.57
12	W10843722		Glide, Platter (left Hand)				$ 176.13
13	W10663641		Spacer, Handle				$ 27.58
14	W10887837		Glass, Crisper Cover   (Replaces: W10804533)			Immediately	$ 242.34
15	W10866163		Glide, Crisper (left Hand)   (Replaces: W10816001)				$ 161.81
16	W10903881		Handle		Appelez-nous	-
17	W11115324		Assembly, Crisper Pan   (Replaces: W10918349)			Immediately	$ 195.85
18	W11401419		Assembly, Light   (Replaces: W10758550)				$ 190.79
19	W10903879		Screw		Appelez-nous	-
20	W11462816		Assembly, Produce Preserver   (Replaces: W10826105)			Immediately	$ 17.15
21	W11592414		Pan, Under Shelf   (Replaces: W10818078)				$ 117.23
22	W10887839		Glass, Platter   (Replaces: W10794571)				$ 242.34
23	W10840918		Flange, Side Support				$ 93.47
24	W10840920		Knob, Side Support		Appelez-nous	-
25	W10882409		Assembly, Herb Storage (includes Lid And Gasket)   (Replaces: W10795580)				$ 52.09
26	W10815941		Bar, Pantry Support		Appelez-nous	-
27	W10847999		Screw   (Replaces: W10804977)				$ 13.47
28	W10794565		Support, Pantry				$ 160.43
29	W11084818		Cover, Pantry   (Replaces: W10794557)				$ 133.02
30	W10794250		Bar, Support				$ 155.69
31	W10834719		Cover, Wiring Harness		Appelez-nous	-
32	W11744510		Assembly, Pantry Wire (includes Thermistor)   (Replaces: W10779301)				$ 114.44
33	W10794550		Assembly, Center Support				$ 280.61
34	W11084821		Frame, Crisper Cover   (Replaces: W10794547)			Immediately	$ 222.60
35	W10794336		Gasket, Crisper Cover (rear)		Appelez-nous	-
36	W10794242		Gasket, Crisper Cover (front)				$ 132.33
37	W10835866		Jumper, Crisper Led		Appelez-nous	-
38	W10854845		Cover, Wiring Harness		Appelez-nous	-
39	W10794553		Support, Side (left Hand)				$ 158.59
40	W10834285		Screw (grey)				$ 20.94
41	W10847999		Screw				$ 13.47
12A	W10814862		Glide, Platter (right Hand)				$ 176.12
15A	W10866166		Glide, Crisper (right Hand)   (Replaces: W10814857)				$ 161.81
39A	W10794555		Support, Side (right Hand)				$ 164.36
9A	W11666273		Assembly, Block (front Right/back Left)   (Replaces: W10817921)				$ 15.52
