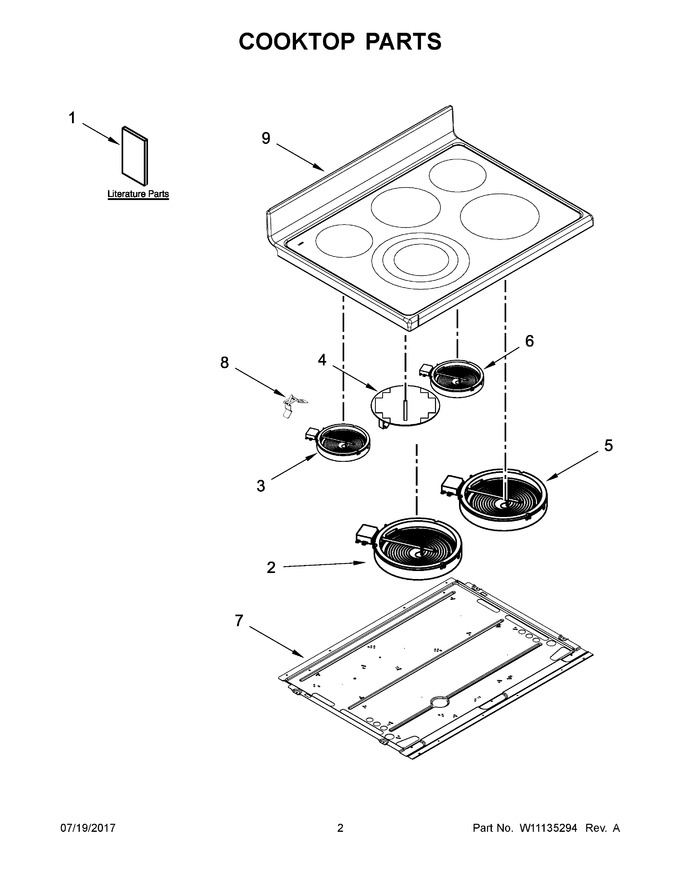

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10694055 | Guide, Use & Care |
|
- | |||||
| 2 | W11101459 | Element (2700w) (left Front) (Replaces: W10670279) |
|
Immediately | $ 215.72 | ||||
| 3 | WPW10270604 | Element (700w) (left Rear) (Replaces: W10270604) |
|
Immediately | $ 223.48 | ||||
| 4 | W11041453 | Element, Warm Zone (center Rear) (Replaces: W10799048) |
|
$ 132.95 | |||||
| 5 | WPW10251108 | Element (3200w) (right Front) (Replaces: W10251108) |
|
Immediately | $ 223.66 | ||||
| 6 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 182.23 | ||||
| 7 | WPW10260946 | Panel, Element Support (Replaces: W10260946) |
|
$ 135.10 | |||||
| 8 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 9 | W10789672 | Cooktop (black) (Replaces: W10687990) |
|
$ 700.40 | |||||
| 1A | W10694065 | Instructions, Installation |
|
- | |||||
| 1B | W10647745 | Sheet, Tech |
|
- | |||||
| 1C | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1D | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| NI | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10825608 | Harness, Main |
|
$ 187.18 | |||||
| NI | W10406512 | Harness, Infinite Switch (left) |
|
$ 143.35 | |||||
| NI | W11172427 | Harness, Infinite Switch (right) (Replaces: W10825612) |
|
$ 193.08 | |||||
| NI | W11172428 | Harness, Eol (mrc) (Replaces: W10853127) |
|
- | |||||
| NI | W11172531 | Harness, Sensor & Locks (Replaces: W10745683) |
|
$ 119.20 | |||||
| NI | W11171874 | Harness, Cooktop (Replaces: W10219254) |
|
$ 235.17 | |||||
| NI | WP4159193 | Screw, Ground (Replaces: 7101P027-60) |
|
$ 5.07 | |||||
| NI | WPW10281322 | Block, Bare Wire Adapter (Replaces: 7401P157-60) |
|
$ 8.87 | |||||
| NI | 8019P013-60 | Clip, Wire Lock |
|
$ 15.70 | |||||
| NI | W11226497 | Cord, Power (Replaces: W10624592) |
|
Immediately | $ 72.99 | ||||
| NI | 8019P026-60 | Clip, Wire-wrap Nylon |
|
- |
