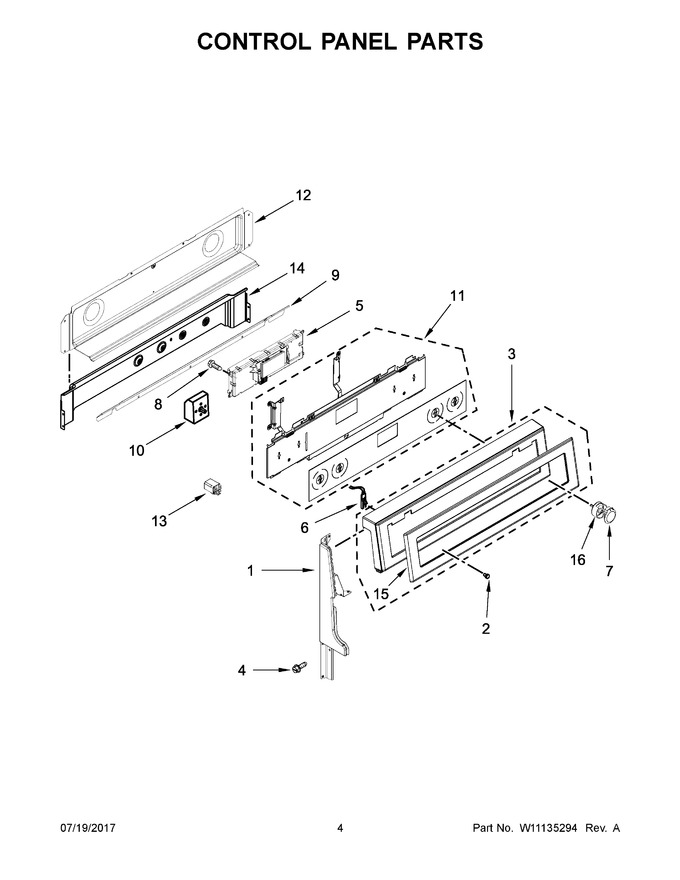

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10319109 | Support, Backguard (black (left)) |
|
$ 92.84 | |||||
| 2 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 3 | W11084228 | Console (black Stainless) (Replaces: W11024860) |
|
$ 561.98 | |||||
| 4 | WP98008545 | Screw (black) (Replaces: 7101P633-60) |
|
$ 18.60 | |||||
| 5 | W11180263 | Control, Electronic (Replaces: W11132271) |
|
$ 501.60 | |||||
| 6 | WP74004153 | Light, Indicator (Replaces: 7407P136-60) |
|
Immediately | $ 8.91 | ||||
| 7 | W11156487 | Knob (stainless) (Replaces: W10823529) |
|
Immediately | $ 61.25 | ||||
| 8 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 9 | WPW10299338 | Shield, Wire Cover (Replaces: W10299338) |
|
$ 96.60 | |||||
| 10 | WPW10296657 | Switch, Infinite (left Front) (Replaces: W10296657) |
|
Immediately | $ 248.84 | ||||
| 11 | W10692155 | Assembly, User Interface (black) |
|
$ 426.96 | |||||
| 12 | W10776098 | Cover, Backguard |
|
$ 135.81 | |||||
| 13 | W10326400 | Relay (12v) |
|
$ 70.90 | |||||
| 14 | W10278697 | Shield, Vent |
|
Immediately | $ 183.33 | ||||
| 15 | N/P | Skin, Control Panel (not Serviced) |
|
- | |||||
| 16 | W11368920 | Bezel, Knob (Replaces: W10645811) |
|
Immediately | $ 60.55 | ||||
| 10A | WPW10295048 | Switch, Infinite (left Rear) (Replaces: W10295048) |
|
Immediately | $ 159.95 | ||||
| 10B | WPW10441696 | Switch, Infinite (right Front) (Replaces: W10441696) |
|
Immediately | $ 112.10 | ||||
| 10C | WP7403P238-60 | Switch, Infinite (right Rear) (Replaces: 7403P373-60) |
|
Immediately | $ 64.20 | ||||
| 1A | W10319111 | Support, Backguard (black (right)) |
|
$ 43.80 |
