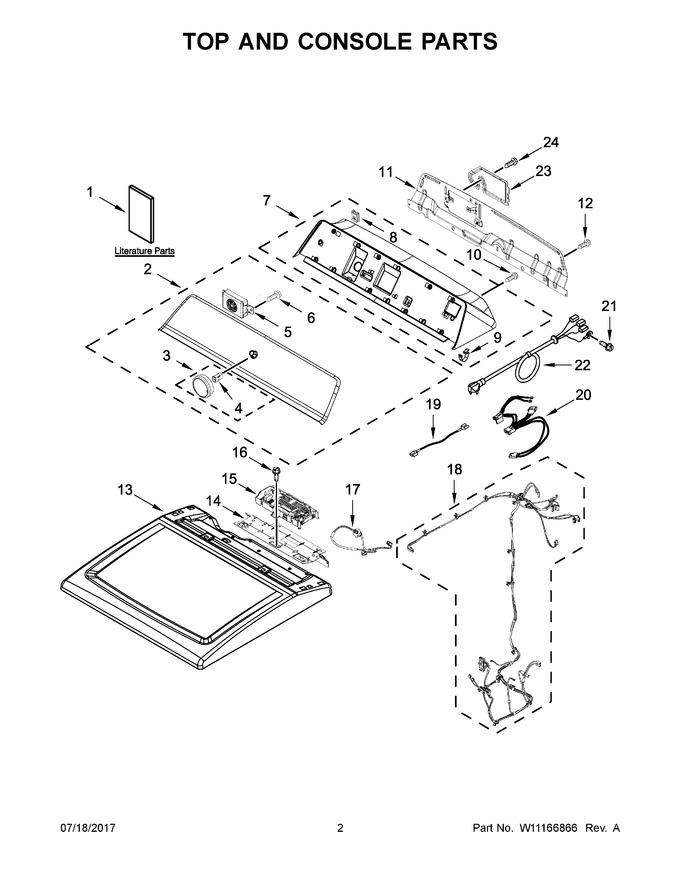

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10904260		Installation Instructions		Appelez-nous	-
2	W11089306		Fascia Assembly   (Replaces: W10913337)			Immediately	$ 472.30
3	W10853910		Assembly, Control Knob (chrome)   (Replaces: W10727011)				$ 53.94
4	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
5	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
6	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
7	W11170247		Console (chrome Shadow)   (Replaces: W11110022)				$ 329.85
8	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
9	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
10	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
11	W11089307		Panel, Rear Console   (Replaces: W10896065)				$ 199.90
12	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
13	W11641122		Top (chrome Shadow)   (Replaces: W10458665)				$ 268.82
14	W11431865		Bracket, Electronic Control   (Replaces: W10896068)				$ 57.36
15	W11089308		Control, Electronic   (Replaces: W10914394)			Immediately	$ 559.53
16	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
17	W10906300		Cable, User Interface				$ 170.43
18	W10907916		Wiring Harness		Appelez-nous	-
19	W10525140		Jumper, Tco High Limit		Appelez-nous	-
20	W10305870		Harness, Gas		Appelez-nous	-
21	W10850756		Screw   (Replaces: W10773242)				$ 8.20
22	W11222083		Cord, Power   (Replaces: W10869141)				$ 126.62
23	W10896066		Cover, Power Cord		Appelez-nous	-
24	WP3390631		Screw   (Replaces: 3390631)				$ 8.25
1A	W10904263		Guide, Use And Care		Appelez-nous	-
1B	W10913969		Tech Sheet		Appelez-nous	-
1C	W10904265		Quick Start Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
