SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Console Parts
03 - Cabinet Parts

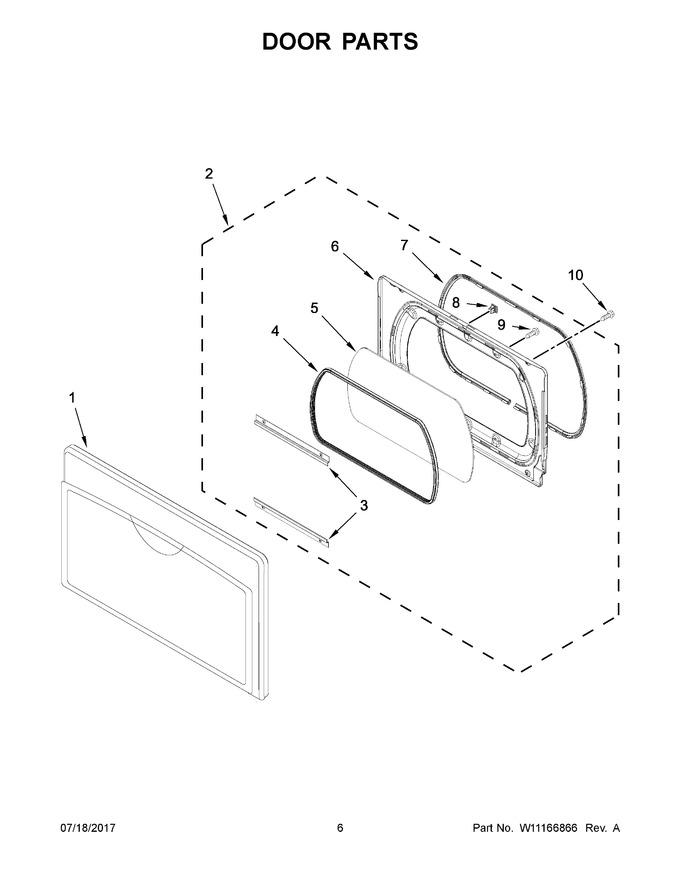

04 - Door Parts
05 - Bulkhead Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11236403 | Assembly, Outer Door (chrome Shadow) (Replaces: W11039169) |
|
$ 376.30 | |||||
| 2 | W11126813 | Assembly, Inner Door (chrome Shadow) (Replaces: W11087235) |
|
$ 211.94 | |||||
| 3 | W10822054 | Retainer, Window (Replaces: 8519354) |
|
Immediately | $ 18.01 | ||||
| 4 | W11676508 | Seal, Window (Replaces: W10284122) |
|
$ 28.37 | |||||
| 5 | WPW10284121 | Glass, Door (Replaces: W10284121) |
|
$ 263.61 | |||||
| 6 | W11124279 | Door, Inner (chrome Shadow) (Replaces: W11087233) |
|
$ 185.89 | |||||
| 7 | WPW10354795 | Seal, Door (Replaces: W10284123) |
|
$ 130.12 | |||||
| 8 | WP3389441 | Assembly, Door Catch (Replaces: 3389441) |
|
$ 6.20 | |||||
| 9 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 8.52 | |||||
| 10 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 8.37 |
