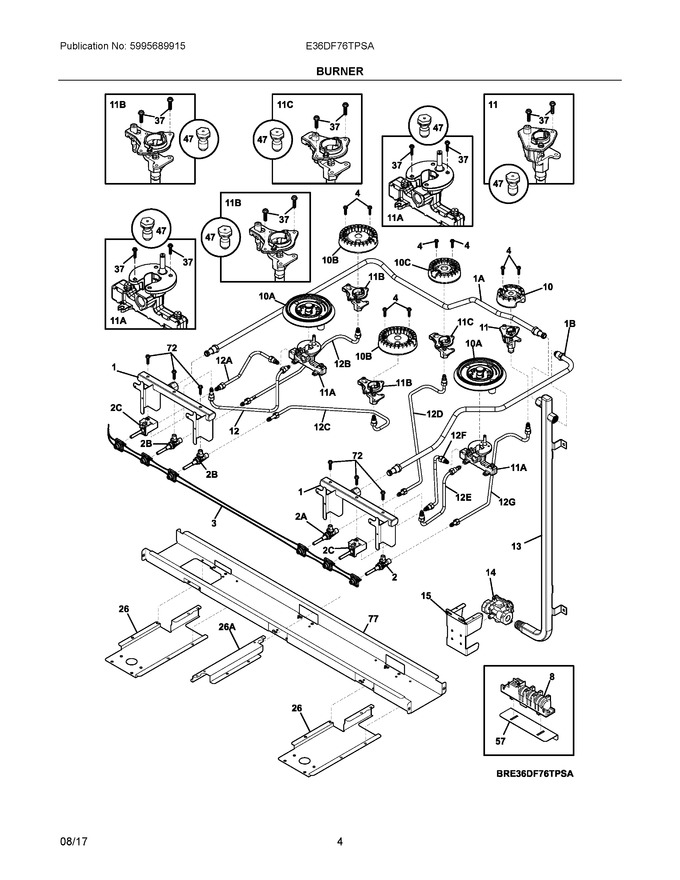

03 - Burner
04 - Body
05 - Main Top
06 - Door
07 - Wiring Diagram
08 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304509808 | Manifold Pipe, (2) |
|
- | |||||
| 2 | 5304506548 | Valve, Top Burner, Green Stem, 850btu |
|
Immediately | $ 91.84 | ||||
| 3 | 5304509820 | Switch Assembly, Ignitor, W/harness |
|
$ 111.73 | |||||
| 4 | 316540900 | Screw, Burner, Head Mtg, (8) |
|
Immediately | $ 16.85 | ||||
| 8 | 808608804 | Spark Module |
|
Immediately | $ 84.51 | ||||
| 10 | 316438200 | Burner, Sealed, 5k |
|
Immediately | $ 63.00 | ||||
| 11 | 316540800 | Ignitor/orifice Assy., Top Burner, 5k, W/holder |
|
$ 12.44 | |||||
| 12 | 807544001 | Tube, Burner, Left Front, Dual Simmer |
|
- | |||||
| 13 | 318357811 | Manifold, Regulator |
|
- | |||||
| 14 | 318122705 | Regulator, Pressure |
|
$ 133.98 | |||||
| 15 | 318376123 | Bracket, Regulator |
|
- | |||||
| 26 | 318363803 | Bracket, Channel Mtg |
|
- | |||||
| 37 | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| 47 | 5304506292 | Lp Kit, Gas Conversion |
|
$ 88.41 | |||||
| 57 | 5304509835 | Bracket, Spark Module |
|
- | |||||
| 72 | 316215600 | Screw, Valve Mtg., 1/4 - 20 |
|
Immediately | $ 15.75 | ||||
| 77 | 318355513 | Bracket, Channel Mtg. |
|
- | |||||
| 10A | 5304501023 | Burner Assembly, G5 |
|
$ 184.43 | |||||
| 10B | 316438600 | Burner, Sealed, 14k |
|
$ 88.67 | |||||
| 10C | 316558300 | Burner, Sealed, 9.5k |
|
Immediately | $ 58.28 | ||||
| 11A | 316440100 | Ignitor/orifice Assy., Top Burner, Twin, 17k, W/holder |
|
$ 186.64 | |||||
| 11B | 316543204 | Ignitor/orifice Assy., Top Burner, 14k |
|
$ 13.70 | |||||
| 11C | 316540700 | Ignitor/orifice Assy., Top Burner, 9.5k, W/holder |
|
$ 12.39 | |||||
| 12A | 807544002 | Tube, Burner, Left Front, Dual Main |
|
- | |||||
| 12B | 807544003 | Tube, Burner, Left Rear |
|
- | |||||
| 12C | 807544004 | Tube, Burner, Center Front |
|
- | |||||
| 12D | 807544005 | Tube, Burner, Center Rear |
|
- | |||||
| 12E | 807544006 | Tube, Burner, Right Front, Dual Simmer |
|
- | |||||
| 12F | 807544007 | Tube, Burner, Right Front, Dual Main |
|
- | |||||
| 12G | 807544008 | Tube, Burner, Right Rear |
|
- | |||||
| 1A | 318305453 | Tube, Manifold, Interconnect |
|
$ 123.87 | |||||
| 1B | 318305454 | Tube, Manifold, Interconnect |
|
$ 114.19 | |||||
| 26A | 318363903 | Bracket, Channel Mtg. |
|
- | |||||
| 2A | 5304506549 | Valve, Top Burner, Blue Stem, 1125btu |
|
Immediately | $ 69.27 | ||||
| 2B | 5304507282 | Valve, Top Burner, Red Stem, 1800btu |
|
Immediately | $ 59.83 | ||||
| 2C | 316272310 | Valve, Dual Burner, Twin |
|
$ 208.13 | |||||
| NI | 316566901 | Sleeve, Insulator |
|
$ 14.32 | |||||
| NIA | 5304509840 | Harness, Ignitor Module |
|
- |
