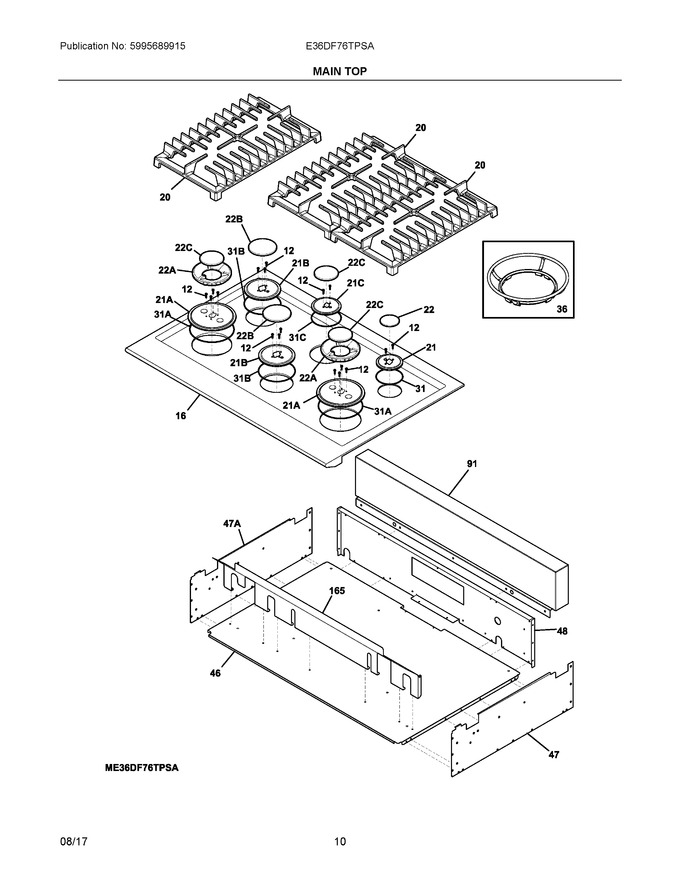

05 - Main Top


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 16.85
16	318185234		Main Top Assy, Frame/glass, Stainless/black				$ 1,250.24
20	5304509811		Grate, Black				$ 293.74
21	318293107		Skirt, 5k Burner, Black				$ 67.41
22	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 38.93
31	316242002		Seal, 5k/9.5k Burner				$ 27.80
36	5304509823		Grate, Wok Ring		Appelez-nous	-
46	5304509785		Panel, Cooktop, Bottom		Appelez-nous	-
47	318241706		Panel, Side, Rh		Appelez-nous	-
48	5304509832		Panel, Cooktop, Rear		Appelez-nous	-
91	5304509789		Panel, Backsplash, Stainless				$ 357.32
165	318355151		Deflector, Heat		Appelez-nous	-
21A	316283900		Skirt, 17k Twin Burner, Black				$ 60.67
21B	318293308		Skirt, 14k Burner, Black			Immediately	$ 78.36
21C	318293007		Skirt, 9.5k Burner, Black				$ 72.47
22A	5304519953		Cap, Burner, Brass, G5   (Replaces: 139029200)				$ 183.52
22B	5304508443		Cap, 14k Burner, Matte, Black   (Replaces: 316262004)			Immediately	$ 51.12
22C	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 40.61
31A	316515203		Seal, 17k Twin Burner, (2)				$ 78.12
31B	316242000		Seal, 12k/14k Burner				$ 81.90
31C	316242001		Seal, 9.5k/12k Burner				$ 25.62
47A	318241707		Panel, Side, Lh		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
