01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts

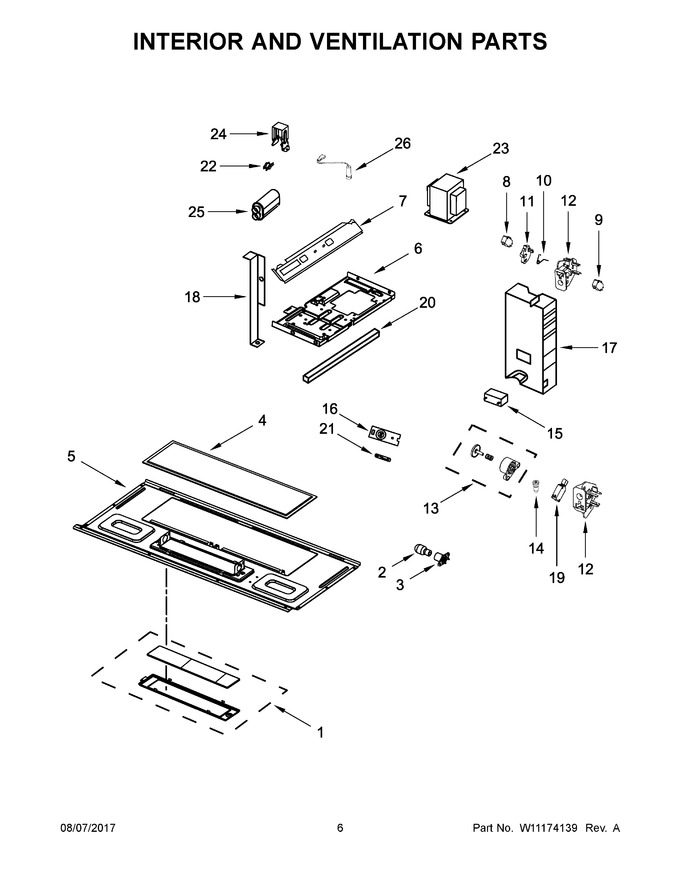

04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10240330 | Assembly, Lamp Glass And Holder |
|
$ 7.19 | |||||
| 2 | 8206232A | Lamp, 40 Watt (Replaces: 8206232) |
|
Immediately | $ 7.34 | ||||
| 3 | W10210871 | Holder, Lamp |
|
Immediately | $ 6.39 | ||||
| 4 | W10208631A | Filter, Grease (Replaces: W10208631) |
|
Immediately | $ 32.59 | ||||
| 5 | W10245196 | Plate, Bottom |
|
$ 244.83 | |||||
| 6 | W10269456 | Chassis |
|
$ 78.11 | |||||
| 7 | W10904020 | Support, Ntc |
|
- | |||||
| 8 | W10727360 | Microswitch V15t16-cz200/nc/no (Replaces: W10269457) |
|
Immediately | $ 5.82 | ||||
| 9 | W10269458 | Microswitch V15t16-cc200/nc |
|
Immediately | $ 40.11 | ||||
| 10 | W10156812 | Spring, Interlock |
|
Immediately | $ 12.14 | ||||
| 11 | W10562613 | Plate, Cam (Replaces: W10156811) |
|
Immediately | $ 17.83 | ||||
| 12 | WP8206419 | Support, Interlock (top) (Replaces: 8206419) |
|
Immediately | $ 22.37 | ||||
| 13 | W10197758 | Assembly, Piston |
|
Immediately | $ 88.91 | ||||
| 14 | 8206180 | Screw |
|
$ 12.83 | |||||
| 15 | W11405832 | Capacitor, Hood Motor (Replaces: W10210855) |
|
$ 27.24 | |||||
| 16 | W10163422 | Thermistor |
|
$ 171.14 | |||||
| 17 | W11302941 | Air Guide, Lower (Replaces: W10771884) |
|
$ 82.66 | |||||
| 18 | W10313275 | Bracket, Top Cavity |
|
$ 33.92 | |||||
| 19 | W10269460 | Microswitch V15t16-cp200/no |
|
Immediately | $ 45.95 | ||||
| 20 | W11523261 | Cushion, Ntc (Replaces: W10313276) |
|
- | |||||
| 21 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 45.85 | ||||
| 22 | W10269232 | Thermostat, Cavity |
|
$ 70.74 | |||||
| 23 | W10836753 | Transformer, High Voltage (Replaces: W10754523) |
|
Immediately | $ 236.06 | ||||
| 24 | W10532063 | Bracket, Capacitor (Replaces: W10156817) |
|
$ 28.28 | |||||
| 25 | 8206562 | Capacitor, High Voltage |
|
Immediately | $ 120.92 | ||||
| 26 | W11817793 | Diode, High Voltage (Replaces: W10492278) |
|
- | |||||
| 12A | WPW10156813 | Support, Interlock (bottom) (Replaces: W10156813) |
|
Immediately | $ 8.07 |
