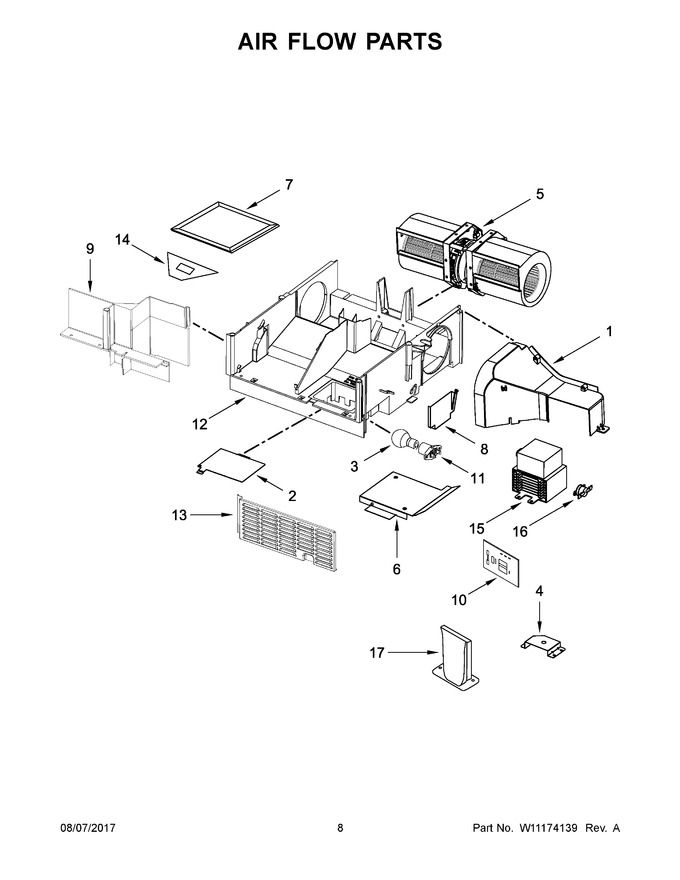

05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10471570 | Deflector, Air |
|
- | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 8.74 | |||||
| 3 | 8206232A | Lamp, Cavity 30 Watt (Replaces: 4393681) |
|
Immediately | $ 7.34 | ||||
| 4 | W10532064 | Bracket, Mounting Filter Board (Replaces: W10313270) |
|
- | |||||
| 5 | W11441128 | Motor, Hood Fan (Replaces: W10836180) |
|
Immediately | $ 211.65 | ||||
| 6 | W10138797 | Guide, Air |
|
$ 90.67 | |||||
| 7 | 8206230A | Filter, Charcoal (Replaces: 8206230) |
|
Immediately | $ 19.25 | ||||
| 8 | W11293488 | Cover, Right Duct (Replaces: W10700156) |
|
$ 80.08 | |||||
| 9 | W10771885 | Plate, Air Guide Sealing |
|
- | |||||
| 10 | W10422269 | Filter, Noise |
|
Immediately | $ 32.18 | ||||
| 11 | WPW10210878 | Socket, Cavity Lamp (Replaces: W10210878) |
|
Immediately | $ 33.21 | ||||
| 12 | W10771886 | Plate, Air Guide Base |
|
- | |||||
| 13 | W10342991 | Shield, Finger |
|
$ 161.74 | |||||
| 14 | W10810142 | Socket, Motor Wire |
|
- | |||||
| 15 | WPW10693025 | Magnetron (Replaces: W10693025) |
|
Immediately | $ 185.06 | ||||
| 16 | W10491433 | Thermostat, Magnetron |
|
$ 87.15 | |||||
| 17 | W10770968 | Plate, Waterproof |
|
$ 61.77 |
