SELECT A DIAGRAM

01 - Cover Sheet

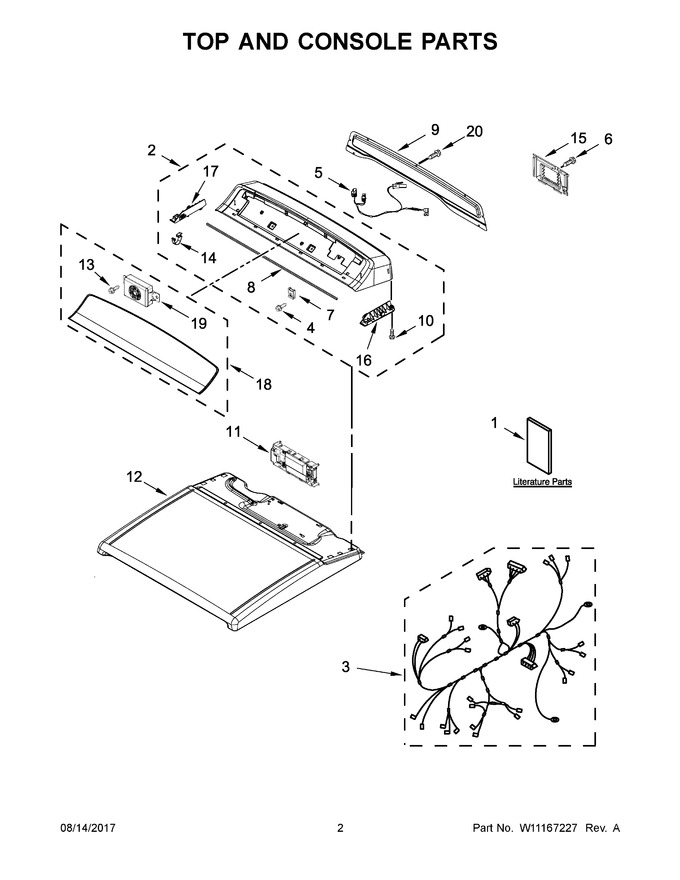

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725269		Installation Instructions		Appelez-nous	-
2	W11050696		Console Assembly (complete) (white)   (Replaces: W10622070)				$ 172.20
3	W10901573		Wiring Harness, Main				$ 144.10
4	W11568617		Screw   (Replaces: W10567155)				$ 14.72
5	W10837032		Harness, User Interface		Appelez-nous	-
6	WP3390631		Screw   (Replaces: 3390631)				$ 8.25
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10622402		Panel, Rear Console		Appelez-nous	-
10	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
11	W11158453		Control, Electronic   (Replaces: W11098435)				$ 555.62
12	W11227373		Top (white)   (Replaces: W10508981)				$ 255.61
13	W11631670		Screw   (Replaces: 8281217)				$ 14.72
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
15	WPW10316167		Cover, Terminal Block   (Replaces: W10316167)				$ 104.04
16	W10631629		Console Mount (right)		Appelez-nous	-
17	W10631630		Console Mount (left)				$ 153.63
18	W11098463		Fascia		Appelez-nous	-
19	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
20	W10704731		Screw		Appelez-nous	-
12A	W11051477		Top (chrome Shadow)   (Replaces: W10681117)				$ 358.85
1A	W11089270		Guide, Use And Care		Appelez-nous	-
1B	W11089260		Tech Sheet		Appelez-nous	-
1C	W10901545		Wiring Diagram		Appelez-nous	-
1D	W11089274		Quickstart Guide		Appelez-nous	-
1E	W10701469		Energy Guide		Appelez-nous	-
2A	W11116871		Console Assembly (complete) (chrome Shadow)   (Replaces: W10682652)				$ 684.03
