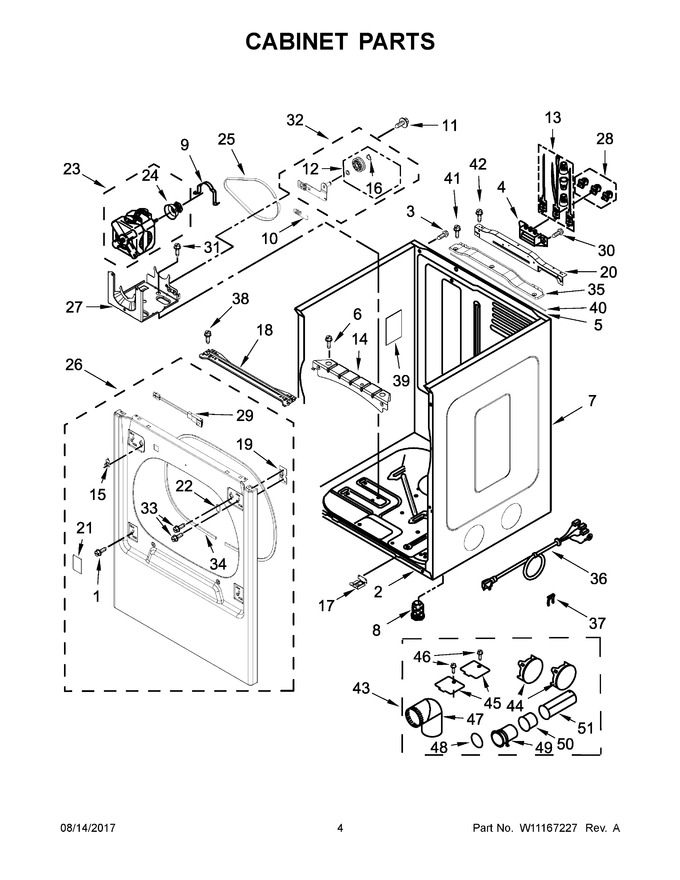

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	6-920119		Screw		Appelez-nous	-
2	W10613683		Base, Cabinet				$ 201.57
3	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
4	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
5	W10824896		Panel, Rear				$ 311.31
6	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
7	W10633648		Panel, Side (white (without Cutout))				$ 287.57
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 8.55
9	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 26.96
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 25.80
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.62
12	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 32.51
13	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
14	W11282908		Spacer Bracket, Upper   (Replaces: W10632348)		Appelez-nous	-
15	W11163826		Strike   (Replaces: W10778071)				$ 26.61
16	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.80
17	W10632347		Spacer Bracket, Lower		Appelez-nous	-
18	W10722502		Brace, Cab And Seal Assembly		Appelez-nous	-
19	W10596959		Bracket, Hinge				$ 20.00
20	W10622391		Bracket, Rear Panel Upper		Appelez-nous	-
21	W10590953		Plug, Hinge (white)		Appelez-nous	-
22	WPW10111888		Plug, Strike   (Replaces: W10111888)				$ 29.69
23	W11105178		Assembly, Motor   (Replaces: W10806759)			Immediately	$ 335.25
24	W11568637		Pulley, Motor   (Replaces: W10669447)				$ 86.58
25	W10849499		Belt, Drive   (Replaces: W10610882)			Immediately	$ 57.86
26	W10875869		Panel, Front (white)   (Replaces: W10861063)				$ 320.59
27	W10578053		Bracket, Motor Mounting				$ 92.22
28	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
29	W11036551		Switch, Door   (Replaces: W10459026)			Immediately	$ 74.25
30	WP3390631		Screw   (Replaces: 3390631)				$ 8.25
31	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
32	W10837240		Assembly, Idler   (Replaces: W10547287)			Immediately	$ 35.78
33	WP3400805		Screw (zinc)   (Replaces: 3400805)				$ 7.55
34	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
35	W10651902		Bulkhead Bracket, Rear Panel (white)   (Replaces: W10672088)		Appelez-nous	-
36	W11710615		Cord, Power   (Replaces: W10712173)			Immediately	$ 82.45
37	W11712577		Clip, Strain Relief   (Replaces: 694415)			Immediately	$ 7.77
38	W10891954		Screw   (Replaces: 8281212)		Appelez-nous	-
39	W11409002		Pad, Foam   (Replaces: W10504381)				$ 23.76
40	W10316616		Seal, Foam				$ 27.79
41	W10850756		Screw   (Replaces: W10773242)				$ 8.20
42	W10636208		Screw		Appelez-nous	-
43	W10704365		Dryer Exhaust Kit (for Side & Bottom Venting), Kit, 4-way Vent				$ 134.80
44	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10151499)				$ 75.58
45	WPW10354249		Plate, Cover   (Replaces: W10354249)				$ 9.41
46	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
47	WPW10416072		Elbow   (Replaces: W10416072)				$ 28.16
48	WPW10344699		Collar, Duct   (Replaces: W10344699)				$ 85.70
49	WPW10331278		Pipe, Exhaust (short)   (Replaces: W10331278)				$ 82.90
50	W10587890		Pipe, Exhaust (medium)		Appelez-nous	-
51	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 93.24
21A	W10596965		Plug, Hinge (chrome Shadow)		Appelez-nous	-
26A	W10875891		Panel, Front (chrome Shadow)   (Replaces: W10861062)				$ 356.12
35A	W10651902		Bulkhead Bracket, Rear Panel (chrome Shadow)   (Replaces: W10672089)		Appelez-nous	-
7A	W10681830		Panel, Side (chrome Shadow (without Cutout))				$ 350.56
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
