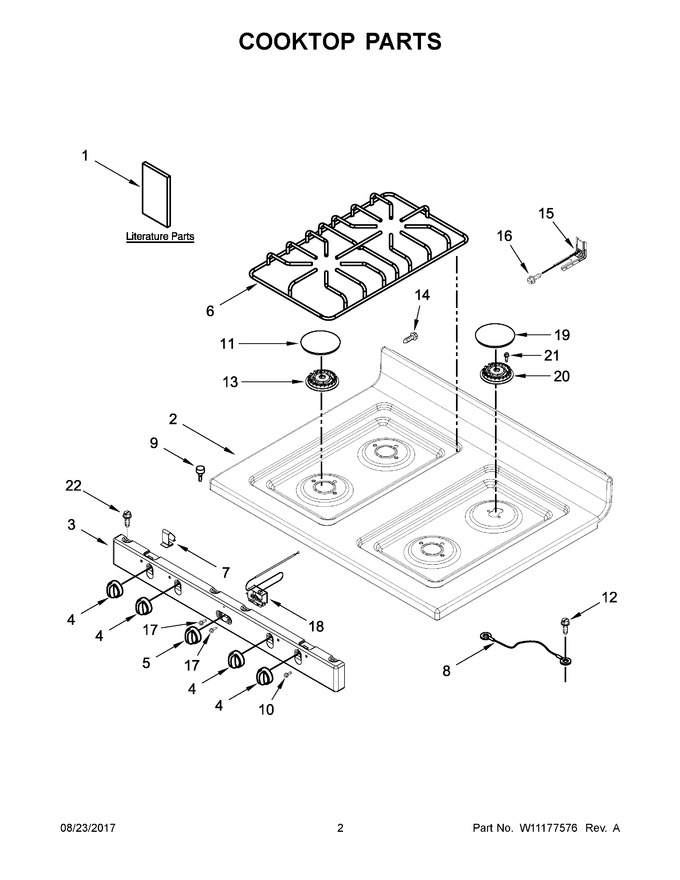

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10821262		Instructions, Installation		Appelez-nous	-
2	W11032725		Cooktop (black)   (Replaces: W10818512)		Appelez-nous	-
3	W10620544		Panel, Manifold (black)		Appelez-nous	-
4	WPW10614598		Knob, Burner (black)   (Replaces: W10614598)				$ 24.13
5	W11690132		Knob, Oven (black)   (Replaces: W10615601)		Appelez-nous	-
6	WPW10578251		Grate, Burner (black)   (Replaces: W10578251)				$ 49.47
7	W11229684		Clip, Cooktop   (Replaces: 98004722)				$ 12.44
8	3184020		Wire, Ground   (Replaces: 98014544)				$ 86.92
9	W10831827		Bumper, Cooktop   (Replaces: 98013389)		Appelez-nous	-
10	WP3400832		Screw (black)   (Replaces: 98006726)			Immediately	$ 8.18
11	WP98017461		Cap, Burner (black (left Front, Left Rear, & Right Front))   (Replaces: 98017461)				$ 70.88
12	W10850756		Screw, Ground   (Replaces: 8534079)				$ 8.20
13	WPW10636224		Burner, Standard (left Front, Left Rear, & Right Front)   (Replaces: W10636224)			Immediately	$ 69.10
14	WP98007225		Screw   (Replaces: 98007225)				$ 7.30
15	WPW10613666		Bracket, Anti-tip   (Replaces: W10613666)				$ 17.96
16	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
17	WP3400882		Screw   (Replaces: 98005663)			Immediately	$ 7.55
18	WPW10636339		Thermostat   (Replaces: W10636339)				$ 158.82
19	WPW10169985		Burner Cap, Auxiliary (black (right Rear))   (Replaces: W10169985)				$ 66.65
20	WPW10515453		Burner, Auxiliary (6k) (right Rear)   (Replaces: W10515453)				$ 99.29
21	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
22	W10837731		Screw   (Replaces: 98006633)				$ 8.30
10A	98005658		Screw (stainless)		Appelez-nous	-
1A	W10620422		Guide, Use And Care		Appelez-nous	-
1B	98007130		Tips, Safe Cooking (english)		Appelez-nous	-
1C	98007032		Sheet, Tech		Appelez-nous	-
2A	W11032726		Cooktop (white)   (Replaces: W10818513)		Appelez-nous	-
3A	W10620542		Panel, Manifold (white)		Appelez-nous	-
4A	WPW10614597		Knob, Burner (white)   (Replaces: W10614597)				$ 24.48
5A	W10814920		Knob, Oven (white)   (Replaces: W10615600)		Appelez-nous	-
NI	98015022		Bushing, Snap		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WP3391018		Tie, Cable   (Replaces: 3391018)				$ 33.43
NI	98005896		Clip, Wire		Appelez-nous	-
NI	W10914402		Harness, Main		Appelez-nous	-
