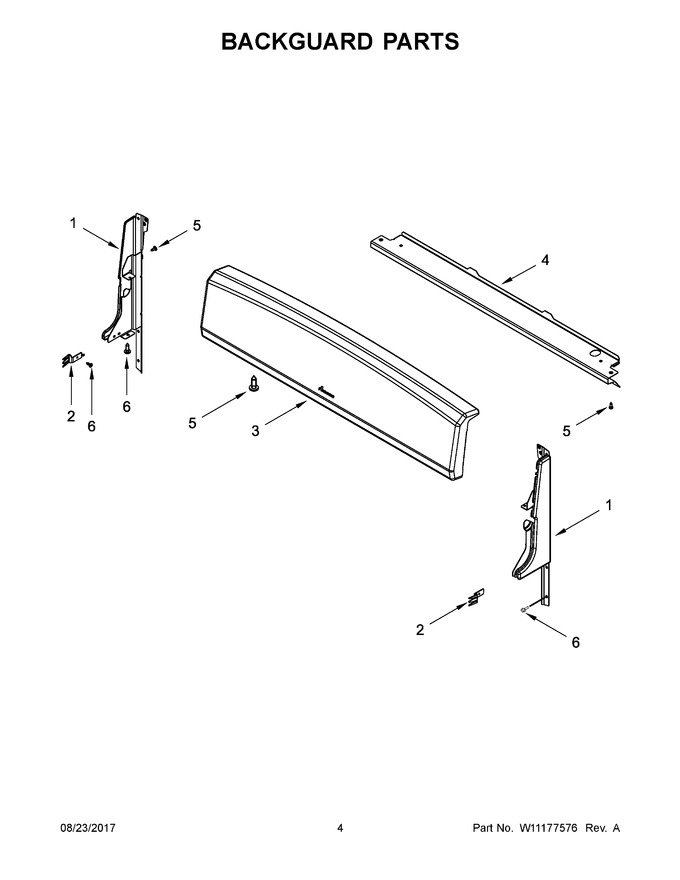

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10873109		Endcap (left Hand) (black)		Appelez-nous	-
2	W10535815		Bracket, Rear		Appelez-nous	-
3	W10874771		Backguard (black)		Appelez-nous	-
4	W10535746		Bracket, Console Mount		Appelez-nous	-
5	WP98008545		Screw (black)   (Replaces: 98008545)				$ 16.74
6	W10837731		Screw   (Replaces: W10493726)				$ 7.47
1A	W10873441		Endcap (left Hand) (white)   (Replaces: W10662110)		Appelez-nous	-
1B	W10873107		Endcap (right Hand) (black)		Appelez-nous	-
1C	W10873438		Endcap (right Hand) (white)   (Replaces: W10661915)		Appelez-nous	-
3A	W10874731		Backguard (white)		Appelez-nous	-
5A	WP98008544		Screw (white)   (Replaces: 98008544)				$ 12.48
