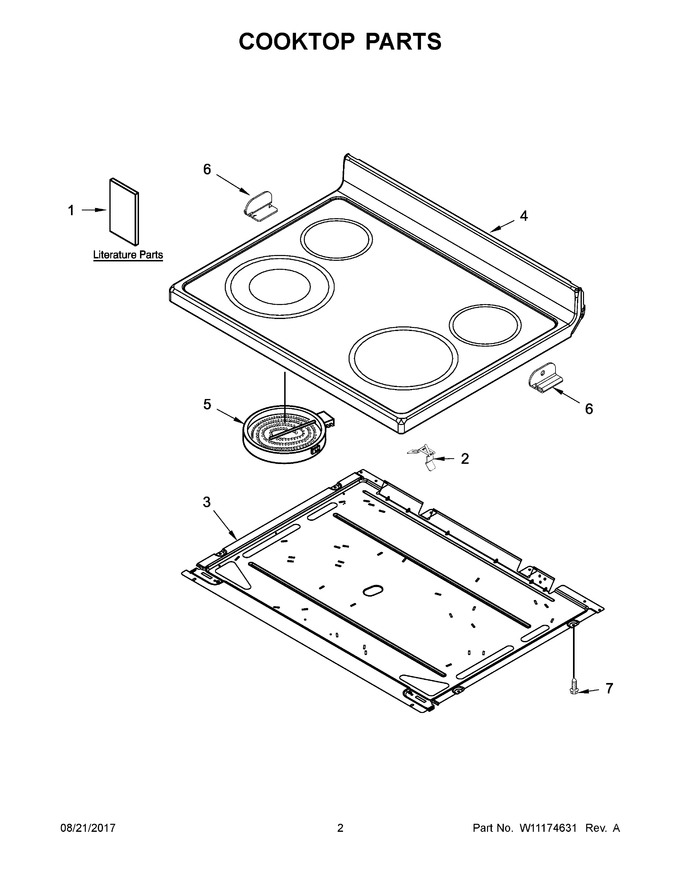

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10877842		Instructions, Installation		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
3	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
4	W11178058		Cooktop (white)   (Replaces: W11034828)				$ 863.40
5	W11517959		Element (3000/1400w) (left Front)   (Replaces: W10275048)			Immediately	$ 134.44
6	W10607641		Bracket, Cooktop (left)				$ 33.52
7	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
1A	W10866296		Guide, Use & Care		Appelez-nous	-
1B	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1C	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1D	W10873898		Sheet, Tech		Appelez-nous	-
1E	W10873905		Diagram, Wiring		Appelez-nous	-
5A	W11171119		Element (1200w) (left Rear & Right Rear)   (Replaces: 8273994)			Immediately	$ 182.23
5B	W11047722		Element (2500w) (right Front)   (Replaces: 8273992)			Immediately	$ 132.46
6A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
NI	W10842605		Harness, Cooktop (left)				$ 205.50
NI	W10842604		Harness, Cooktop (right)				$ 205.24
NI	W11825098		Harness, Hidden Bake   (Replaces: W10465644)				$ 86.33
NI	W10183541		Clip, Spring Steel		Appelez-nous	-
NI	WPW10281322		Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 8.87
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11188499		Harness, Main   (Replaces: W10863976)				$ 229.13
