01 - Cover Sheet
02 - Cooktop Parts

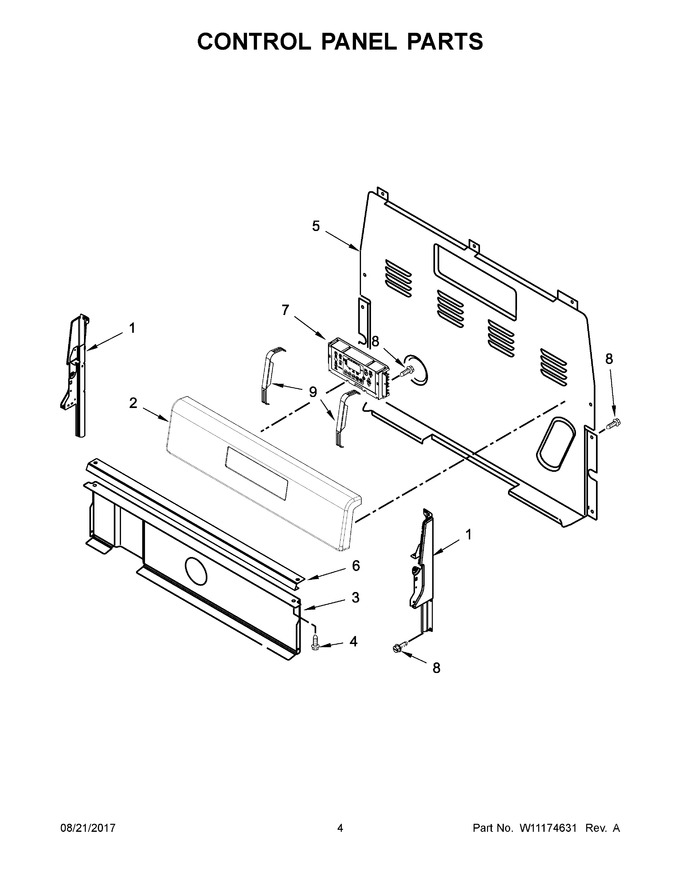

03 - Control Panel Parts
04 - Chassis Parts
05 - Drawer And Broiler Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white (left)) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 2 | W11178659 | Panel, Control (white) (Replaces: W11090728) |
|
$ 480.65 | |||||
| 3 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 4 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 5 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 6 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 7 | W11178660 | Control, Range (white) (Replaces: W11040418) |
|
$ 523.95 | |||||
| 8 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 9 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 84.81 | ||||
| 1A | W11219370 | Endcap (white (right)) (Replaces: W10184434) |
|
$ 60.83 |
