New Model Search:

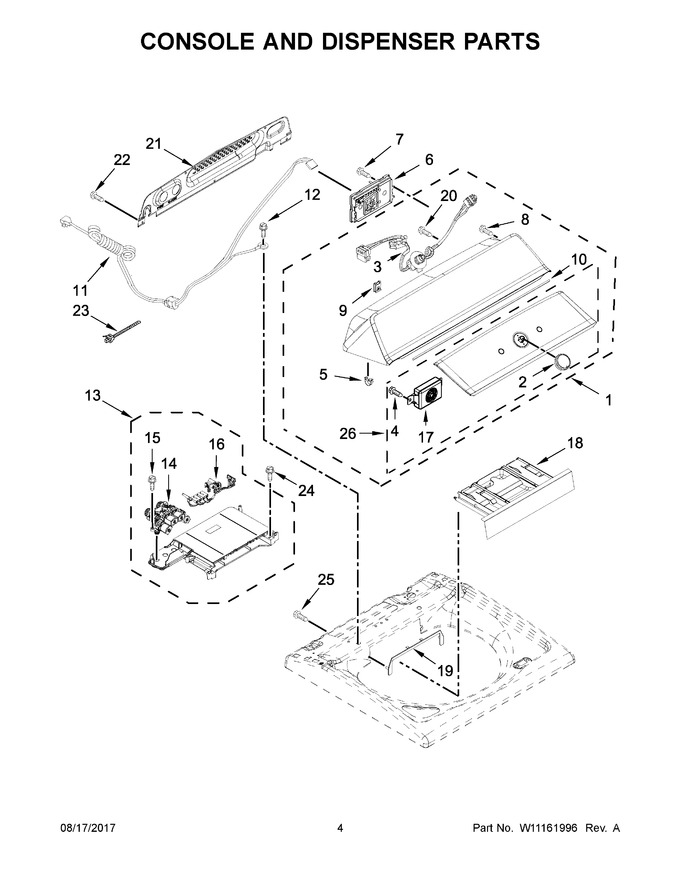

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11175536 | Console (white) (Replaces: W11092532) |
|
- | |||||
| 2 | W10853910 | Assembly, Control Knob (chrome) (Replaces: W10727011) |
|
$ 51.37 | |||||
| 3 | W11199207 | Harness, Ui (Replaces: W10771770) |
|
$ 162.31 | |||||
| 4 | WP9740849 | Screw (Replaces: 9740849) |
|
$ 6.95 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W11611437 | Control Unit Assembly, Machine And Motor (Replaces: W11098456) |
|
- | |||||
| 7 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 8 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.02 | |||||
| 9 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.74 | |||||
| 10 | W10618933 | Seal, Console |
|
- | |||||
| 11 | W10859955 | Cord, Power (Replaces: W10479821) |
|
$ 78.79 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.76 | ||||
| 13 | W11173599 | Assembly, Housing (Replaces: W11096284) |
|
$ 363.59 | |||||
| 14 | W11165546 | Valve, Water Inlet (Replaces: W11096267) |
|
Immediately | $ 108.31 | ||||
| 15 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 8.00 | ||||
| 16 | W11193817 | Harness, Valve (Replaces: W10849297) |
|
Immediately | $ 177.48 | ||||
| 17 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 77.08 | |||||
| 18 | W11209429 | Assembly, Dispenser Drawer (white) (Replaces: W10794824) |
|
$ 104.98 | |||||
| 19 | W10601845 | Assembly, Dispenser Bezel (white) (Replaces: W10601841) |
|
$ 40.56 | |||||
| 20 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.00 | ||||
| 21 | W10611544 | Panel, Console Rear Cover |
|
$ 324.98 | |||||
| 22 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.86 | ||||
| 23 | WPW10298887 | Cable Tie (Replaces: W10298887) |
|
$ 7.60 | |||||
| 24 | W11700520 | Screw (Replaces: 3400061) |
|
$ 13.60 | |||||
| 25 | WPW10273971 | Screw (Replaces: W10273971) |
|
Immediately | $ 7.19 | ||||
| 26 | W11175538 | Fascia (Replaces: W11092516) |
|
- |
