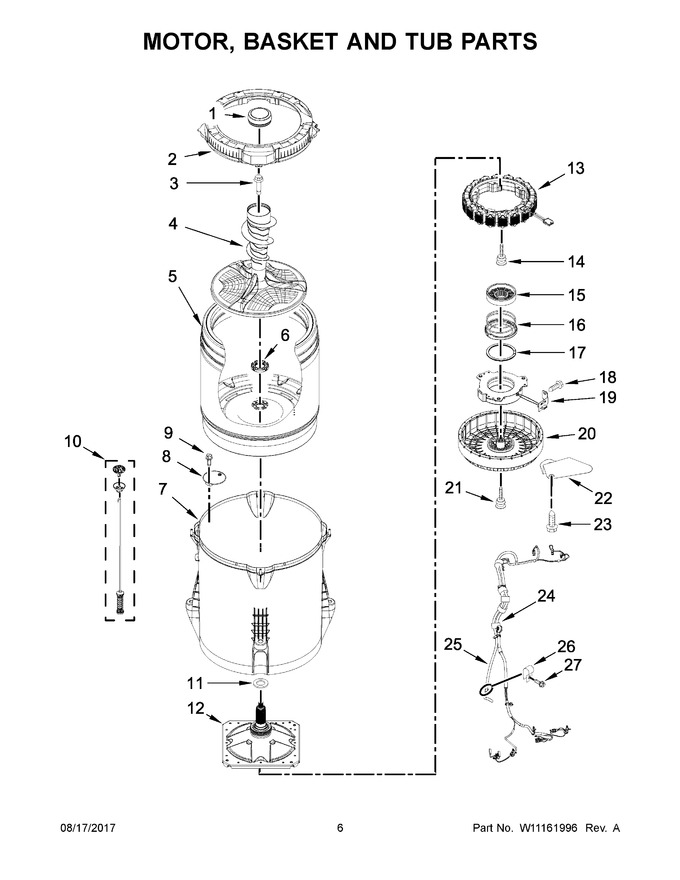

04 - Motor, Basket And Tub Parts
05 - Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10680189 | Cap, Agitator |
|
$ 50.81 | |||||
| 2 | W11190826 | Tub Ring (Replaces: W10578861) |
|
$ 200.15 | |||||
| 3 | W10752187 | Screw (Replaces: W10625252) |
|
Immediately | $ 9.37 | ||||
| 4 | W11550891 | Agitator (Replaces: W10882734) |
|
Immediately | $ 113.87 | ||||
| 5 | W10811957 | Basket Assembly (Replaces: W10586078) |
|
$ 511.59 | |||||
| 6 | W10909670 | Nut, Spin Tube (Replaces: W10564013) |
|
Immediately | $ 32.34 | ||||
| 7 | W11219115 | Tub (Replaces: W10512161) |
|
$ 387.09 | |||||
| 8 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 65.26 | |||||
| 9 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 10 | W11130359 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W11033536) |
|
Immediately | $ 130.44 | ||||
| 11 | W11032711 | Washer, Thrust (Replaces: W10665342) |
|
Immediately | $ 10.35 | ||||
| 12 | W11393685 | Assembly, Drive (Replaces: W10868473) |
|
Immediately | $ 331.36 | ||||
| 13 | W10754158 | Stator, Motor (Replaces: W10579778) |
|
Immediately | $ 238.17 | ||||
| 14 | W11027980 | Screw (Replaces: W10644129) |
|
Immediately | $ 8.12 | ||||
| 15 | W10734521 | Slider (Replaces: W10447975) |
|
Immediately | $ 42.17 | ||||
| 16 | W10734521 | Assembly, Spring (Replaces: W10006494) |
|
Immediately | $ 42.17 | ||||
| 17 | W10734521 | Ring, Snap (Replaces: W10275082) |
|
Immediately | $ 42.17 | ||||
| 18 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.98 | |||||
| 19 | W10754448 | Assembly, Clutch (Replaces: W10817398) |
|
Immediately | $ 137.09 | ||||
| 20 | W10754161 | Rotor, Motor (Replaces: W10447979) |
|
Immediately | $ 220.45 | ||||
| 21 | W10752189 | Screw (Replaces: W10636382) |
|
Immediately | $ 8.86 | ||||
| 22 | W10673062 | Harness Shield - Motor |
|
$ 77.71 | |||||
| 23 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 24 | W11666463 | Harness, Lower (Replaces: W10777953) |
|
$ 133.35 | |||||
| 25 | WP353244 | Hose Pressure Switch (Replaces: W10753364) |
|
Immediately | $ 59.93 | ||||
| 26 | W10005430 | Clamp, Cable |
|
Immediately | $ 9.53 | ||||
| 27 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 8.80 |
