SELECT A DIAGRAM

01 - Cover Sheet


02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)

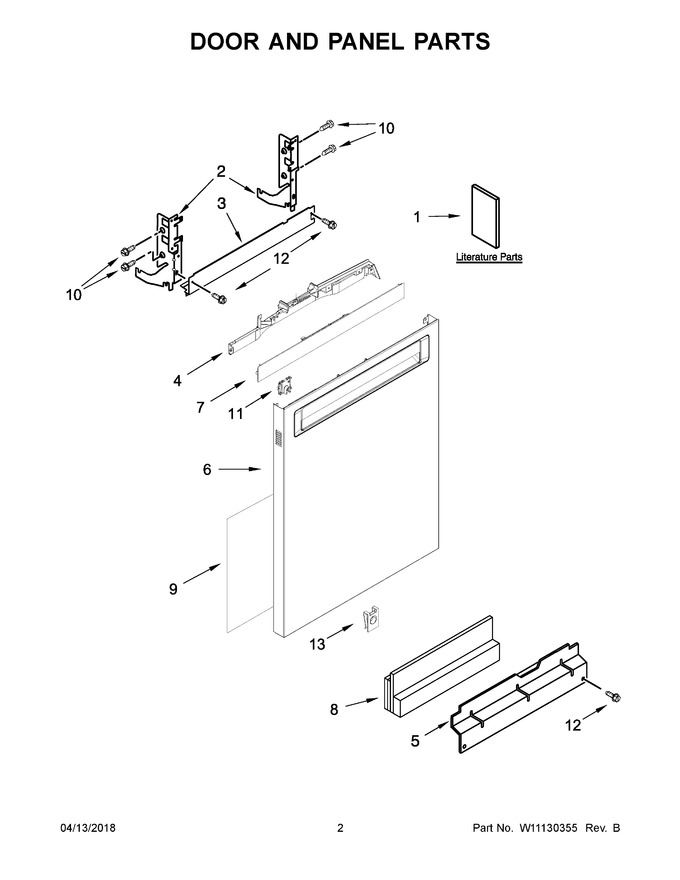

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10806906		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor   (Replaces: W10844384)			Immediately	$ 32.88
4	W11662067		Cover, Handle Pocket   (Replaces: W10858705)				$ 82.01
5	W11763736		Access Panel (black)   (Replaces: W10852733)			Immediately	$ 42.25
6	W11157407		Panel, Front (includes Item 11) (stainless)   (Replaces: W11024140)			Immediately	$ 459.56
7	W11481723		Cover, Display Lens   (Replaces: W10858692)				$ 192.24
8	W11223838		Insulation, Four Layer   (Replaces: W10735304)			Immediately	$ 43.91
9	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
10	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
11	W10692757		Barrel Nut, Front Panel				$ 16.01
12	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
13	W10910629		U-nut   (Replaces: W10853886)				$ 8.64
1A	W10911190		Energy Guide		Appelez-nous	-
1B	W11040104		Use & Care Guide		Appelez-nous	-
1C	W10920270		Tech Sheet		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
6A	W10878067		Panel, Front (includes Item 11) (black Stainless)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
