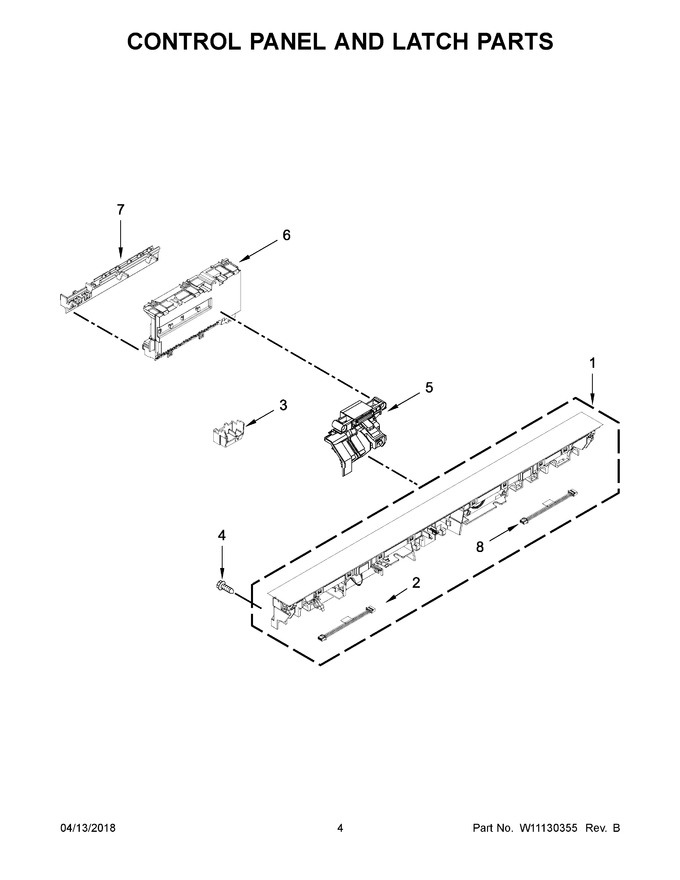

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11131319 | Console Assembly (black) (Replaces: W10905152) |
|
$ 369.65 | |||||
| 2 | W10889948 | Jumper, 3-wire |
|
$ 20.98 | |||||
| 3 | W11305293 | Box, Connector (Replaces: W10825638) |
|
Immediately | $ 236.98 | ||||
| 4 | WPW10348408 | Screw (Replaces: W10348408) |
|
Immediately | $ 7.55 | ||||
| 5 | WPW10653840 | Latch Assembly (includes Switch) (Replaces: W10653840) |
|
Immediately | $ 34.18 | ||||
| 6 | W11341633 | Control, Electronic (Replaces: W11170188) |
|
$ 332.21 | |||||
| 7 | W11305293 | Brace, Connector (Replaces: W10825369) |
|
Immediately | $ 236.98 | ||||
| 8 | W11662069 | Jumper, 4-wire (Replaces: W10899392) |
|
Immediately | $ 23.81 |
