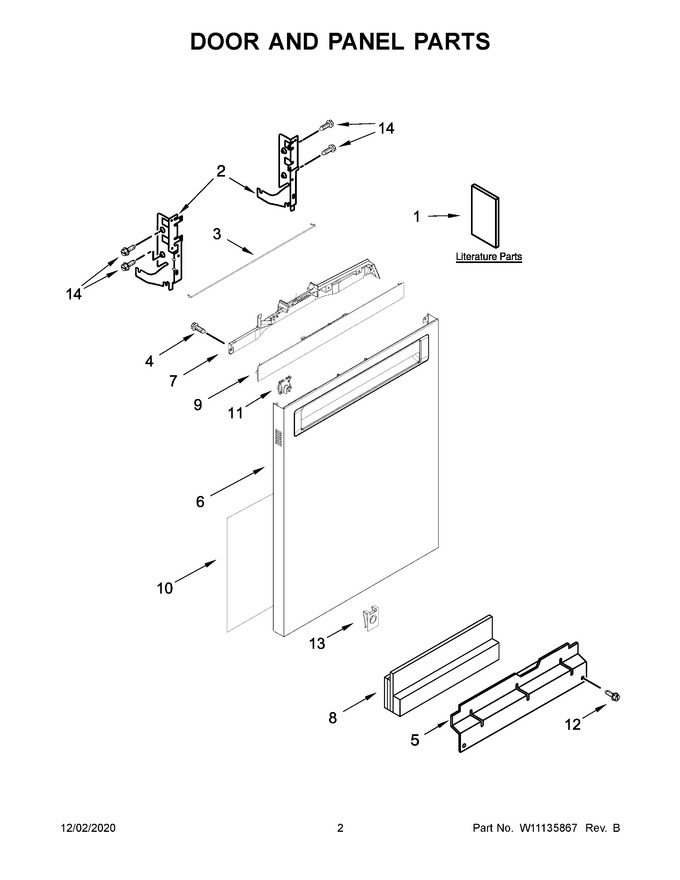

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10806906		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Stiffener, Door   (Replaces: W10803537)			Immediately	$ 32.88
4	WPW10273971		Screw   (Replaces: W10273971)			Immediately	$ 7.55
5	W11763736		Access Panel (black)   (Replaces: W10852733)			Immediately	$ 42.25
6	W11157407		Panel, Front (includes Item 11) (stainless)   (Replaces: W11024140)			Immediately	$ 459.56
7	W11662067		Cover, Handle Pocket   (Replaces: W10858705)				$ 82.01
8	W11223838		Insulation, Four Layer   (Replaces: W10735304)			Immediately	$ 43.91
9	W11481723		Cover, Display Lens   (Replaces: W11364568)				$ 192.24
10	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
11	W10692757		Barrel Nut, Front Panel				$ 16.01
12	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
13	W10910629		U-nut   (Replaces: W10853886)				$ 8.64
14	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
1A	W11243817		Energy Guide		Appelez-nous	-
1B	W11040100		Use & Care Guide		Appelez-nous	-
1C	W11266095		Tech Sheet		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
6A	W10878067		Panel, Front (includes Item 11) (black Stainless)		Appelez-nous	-
