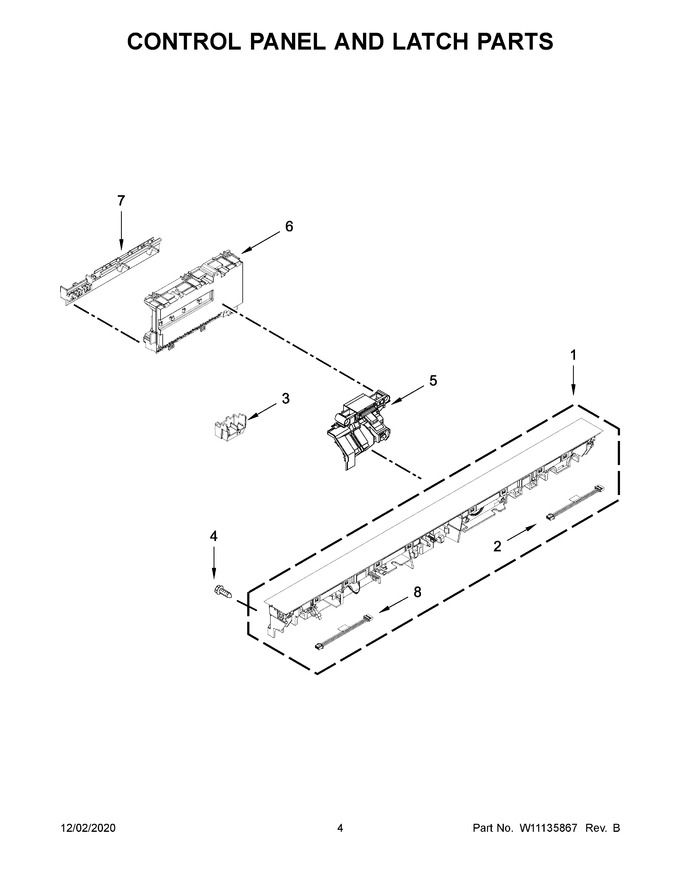

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11162732 | Console Assembly (includes Insert) (black) (Replaces: W10905154) |
|
Immediately | $ 341.96 | ||||
| 2 | W11662069 | Jumper, 4-wire (Replaces: W10899392) |
|
Immediately | $ 23.81 | ||||
| 3 | WPW10462393 | Box, Connector (Replaces: W10462393) |
|
$ 8.56 | |||||
| 4 | WPW10348408 | Screw (Replaces: W10348408) |
|
Immediately | $ 7.55 | ||||
| 5 | WPW10653840 | Latch Assembly (includes Switch) (Replaces: W10653840) |
|
Immediately | $ 34.18 | ||||
| 6 | W11120155 | Control, Electronic (Replaces: W10911471) |
|
$ 318.03 | |||||
| 7 | WPW10462395 | Brace, Connector (Replaces: W10462395) |
|
$ 21.65 | |||||
| 8 | W10889948 | Jumper, Ui |
|
$ 20.98 |
