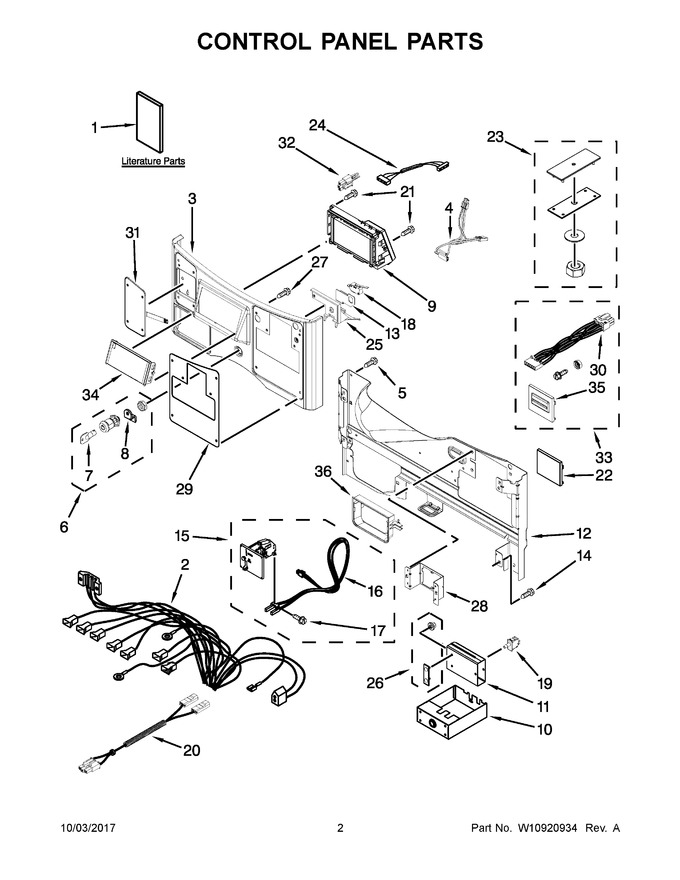

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10920979 | Instructions, Installation For Mlg22pd/praww |
|
- | |||||
| 2 | W10555303 | Harness, Wiring (electric Models) |
|
- | |||||
| 3 | W11181684 | Panel, Console (Replaces: W10198207) |
|
- | |||||
| 4 | W10242896 | Wire Harness, Sensor Switch |
|
- | |||||
| 5 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 6 | W11191256 | Assembly, Lock Access Door (Replaces: W10899602) |
|
$ 37.72 | |||||
| 7 | WPW10140858 | Key, Access Door (Replaces: W10140858) |
|
Immediately | $ 22.10 | ||||
| 8 | W11165684 | Cam, Locking (Replaces: W10913660) |
|
$ 9.57 | |||||
| 9 | W11348571 | Assembly, Techbox (pd) (Replaces: W11040815) |
|
$ 776.99 | |||||
| 10 | W11204019 | Box, Coin (Replaces: W10133248) |
|
$ 163.85 | |||||
| 11 | W11204020 | Assembly, Vault Body (Replaces: W10133258) |
|
$ 421.72 | |||||
| 12 | W11200173 | Bracket, Console (Replaces: W10198369) |
|
- | |||||
| 13 | W10160652 | Bracket-switch |
|
- | |||||
| 14 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 7.30 | |||||
| 15 | WPW10133242 | Assembly, Single Coin Drop For Mle/g22pdaww (Replaces: W10133242) |
|
$ 126.51 | |||||
| 16 | WPW10247389 | Coin Optic Sensor Assembly (white) (Replaces: W10247389) |
|
Immediately | $ 121.70 | ||||
| 17 | WP3395530 | Screw (Replaces: W10142655) |
|
$ 8.57 | |||||
| 18 | WPW10447152 | Switch, Service Access (Replaces: W10447152) |
|
$ 43.26 | |||||
| 19 | WPW10131838 | Switch, Vault Service Door (Replaces: W10131838) |
|
$ 25.11 | |||||
| 20 | W10300896 | Wire Harness, Vault Switch |
|
- | |||||
| 21 | WPW10273971 | Screw (Replaces: W10192860) |
|
Immediately | $ 7.55 | ||||
| 22 | W10198366 | Cover Pd/pn |
|
- | |||||
| 23 | W11416034 | Kit-coin Box, Security (to Be Serviced As A Kit) (Replaces: W10169579) |
|
$ 132.30 | |||||
| 24 | W11700545 | Harness, Wire Dryer Ccu To Uic (Replaces: W10242897) |
|
$ 32.68 | |||||
| 25 | W10198375 | Console, Support |
|
- | |||||
| 26 | W10159907 | Assembly, Mounting Strap Weld |
|
- | |||||
| 27 | 3400408 | Screw |
|
- | |||||
| 28 | W10198322 | Bracket (pd) |
|
- | |||||
| 29 | W11034287 | Fascia (pd) |
|
- | |||||
| 30 | WPW10239515 | Harness, Card Reader (Replaces: W10239515) |
|
$ 155.18 | |||||
| 31 | W11191295 | Fasica, Membrane And Bezel Assembly (Replaces: W10899384) |
|
$ 217.82 | |||||
| 32 | W11129439 | Jumper, Switch Service/vault (Replaces: W10133282) |
|
$ 17.66 | |||||
| 33 | W11519983 | Card Reader, Conversion Kit (Replaces: W10198451) |
|
$ 78.10 | |||||
| 34 | W10198390 | Display, Window |
|
$ 86.45 | |||||
| 35 | WPW10198367 | Bezel (pr) (Replaces: W10198367) |
|
$ 24.53 | |||||
| 36 | W10198345 | Collar, Dispenser |
|
- | |||||
| 15A | W11643135 | Assembly, Dual Coin Drop For Mle/g22pdazw (Replaces: W10198395) |
|
$ 597.42 | |||||
| 16A | W10247388 | Coin Optic Sensor Assembly (black) |
|
- | |||||
| 1A | W10920980 | Instructions, Installation For Mle22pd/prazw |
|
- | |||||
| 1B | W10920931 | Sheet, Tech |
|
- | |||||
| 28A | WPW10198323 | Bracket (pr) (Replaces: W10198323) |
|
$ 25.90 | |||||
| 29A | W11034310 | Fascia (pr) |
|
- | |||||
| 2A | W10555305 | Harness, Wiring (gas Models) |
|
- | |||||
| 9A | W11348571 | Assembly, Techbox (pr) (Replaces: W11040837) |
|
$ 776.99 |
