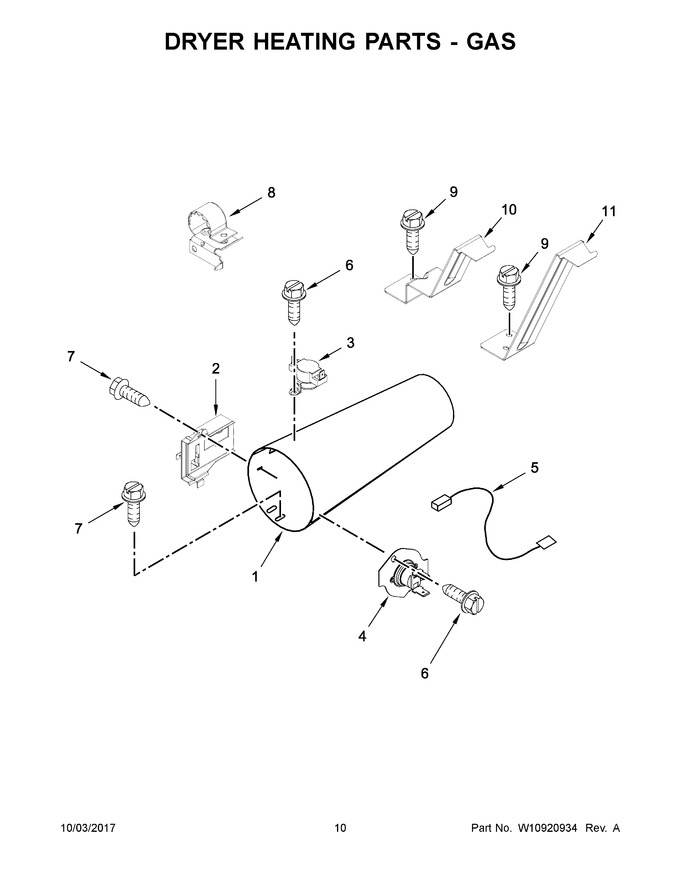

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8573824 | Funnel, Burner (Replaces: 8573824) |
|
$ 185.29 | |||||
| 2 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 3 | WP3391912 | Thermostat, Hi Limit (Replaces: 3391912) |
|
Immediately | $ 71.56 | ||||
| 4 | WP8573713 | Cut-off, Thermal (Replaces: 8573713) |
|
Immediately | $ 72.51 | ||||
| 5 | WP3401707 | Jumper, Wire (Replaces: 3401707) |
|
$ 86.59 | |||||
| 6 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 7 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 8 | 3978776 | Bracket, Gas Pipe |
|
- | |||||
| 9 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 10 | W10198376 | Bracket, Burner (pd - Coin Drop) |
|
- | |||||
| 11 | W10181903 | Bracket, Burner (pr - Card Reader) (Replaces: 8529757) |
|
- |
