SELECT A DIAGRAM

01 - Cover Sheet

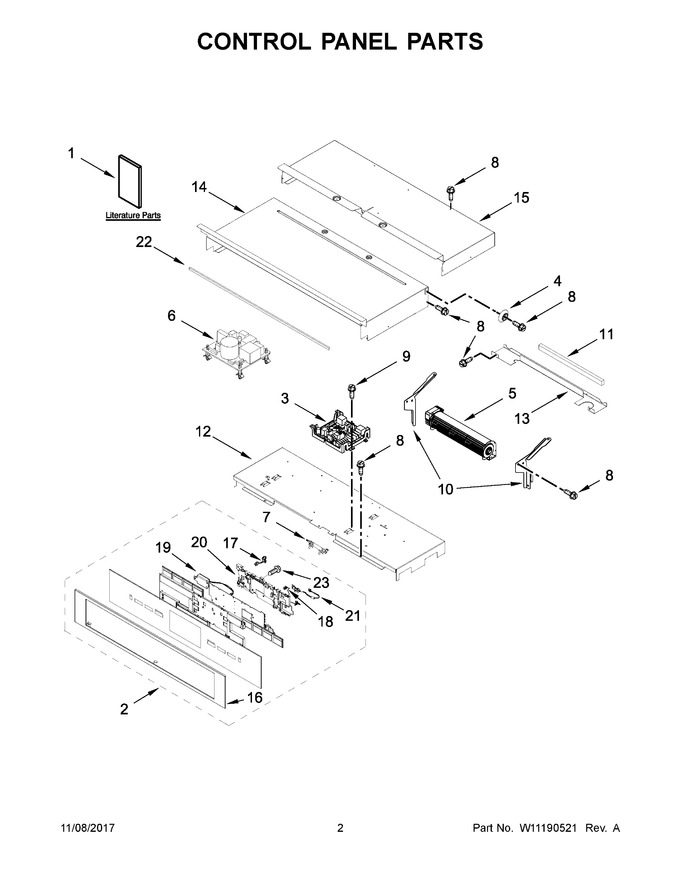

02 - Control Panel Parts


03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10754335		Guide, Use & Care		Appelez-nous	-
2	W11236887		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W10876356)				$ 1,480.92
3	W11179310		Control (with Power Supply)   (Replaces: W11040195)			Immediately	$ 456.49
4	W10618105		Spacer, Lateral		Appelez-nous	-
5	W11713858		Blower   (Replaces: W10669823)			Immediately	$ 348.59
6	WPW10260060		Board, Power Supply   (Replaces: W10260060)			Immediately	$ 317.35
7	W11204568		Fuse, Thermal   (Replaces: W10782117)			Immediately	$ 131.58
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	W10864102		Tray, Electronic				$ 67.13
13	W10655465		Chassis, Back Divider		Appelez-nous	-
14	W10444125		Chassis, Cover Top Front 30		Appelez-nous	-
15	W10904156		Chassis, Cover Top Back 30   (Replaces: W10694465)		Appelez-nous	-
16	W10444132		Skin, Control Panel (stainless)				$ 303.50
17	W10566973		Harness, Keypad (left To Center)				$ 82.19
18	W10524350		Harness, Keypad (right To Center)				$ 78.21
19	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
20	W10668510		Housing				$ 105.17
21	W10575307		Jumper Harness, Power Supply			Immediately	$ 173.84
22	W10728475		Gasket, Rubber				$ 38.13
23	W10489172		Screw				$ 11.98
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W10768183		Instructions, Installation		Appelez-nous	-
1B	W11041085		Sheet, Tech		Appelez-nous	-
1C	W10351318		Instructions, Undercounter Install		Appelez-nous	-
NI	W10760039		Bag, Hardware   (Replaces: W10431303)				$ 12.17
NI	W11226263		Harness, Signal   (Replaces: W10517751)				$ 231.12
NI	W11132993		Harness, Main   (Replaces: W11033085)				$ 247.32
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11699910		Harness, Eol   (Replaces: W10562910)			Immediately	$ 32.95
NI	4450800		Screw, Grounding				$ 13.47
NI	W10487999		Clip, Harness				$ 21.12
NI	4452400		Strap, Lead Ground				$ 45.42
NI	4448664		Clamp, Conduit				$ 21.41
NI	W10655464		Bracket, Harness				$ 40.71
NI	W11132989		Harness, Door Latch   (Replaces: W10775068)				$ 118.98
