01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts
04 - Oven Door Parts

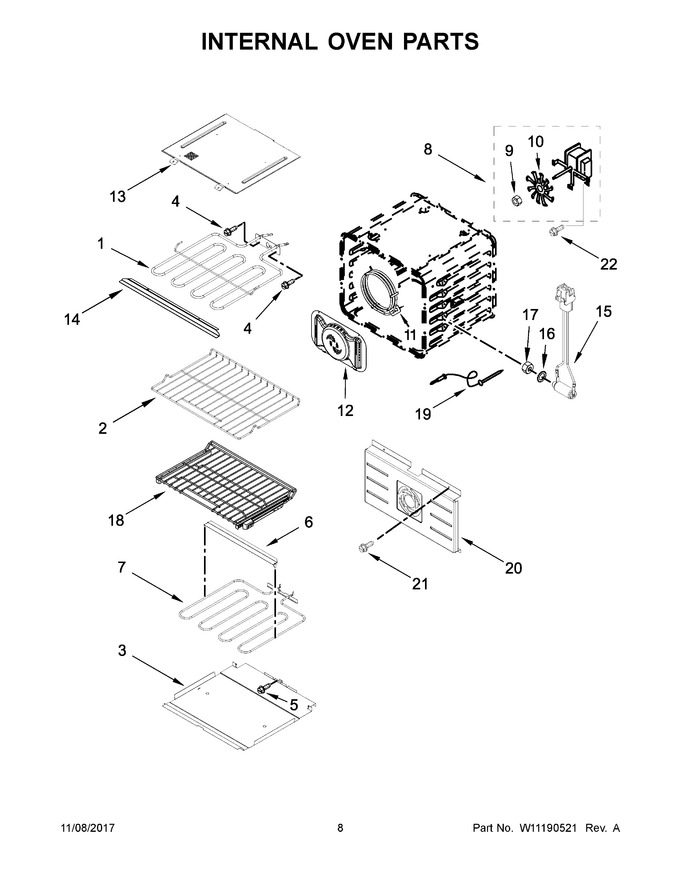

05 - Internal Oven Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10804429 | Element, Broil (Replaces: W10764078) |
|
Immediately | $ 152.91 | ||||
| 2 | WPW10554526 | Rack, Oven (Replaces: W10554526) |
|
Immediately | $ 182.96 | ||||
| 3 | W10318198 | Tray, Hidden Bake |
|
$ 195.83 | |||||
| 4 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 5 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 6 | W10282957 | Crossbar, Hidden Bake Tray |
|
$ 47.47 | |||||
| 7 | W11545804 | Element, Bake (Replaces: W10546517) |
|
Immediately | $ 102.53 | ||||
| 8 | W10860984 | Fan, Convection (Replaces: W10722667) |
|
Immediately | $ 176.41 | ||||
| 9 | W10794042 | Nut, Acorn (lh) (Replaces: W10631504) |
|
$ 13.14 | |||||
| 10 | W10819914 | Blade, Fan (Replaces: W10631503) |
|
Immediately | $ 88.67 | ||||
| 11 | W11678579 | Element, Convection (Replaces: W10546519) |
|
Immediately | $ 121.00 | ||||
| 12 | W10496637 | Baffle, Bow Tie |
|
$ 235.70 | |||||
| 13 | W11290999 | Shield, Broil Element (Replaces: W10911205) |
|
$ 210.95 | |||||
| 14 | W10588738 | Shield, Broil Front |
|
$ 100.55 | |||||
| 15 | W11220388 | Jack, Meat Probe (Replaces: W10696226) |
|
Immediately | $ 69.63 | ||||
| 16 | WP9755547 | Washer, Lock (Replaces: 9755547) |
|
$ 6.41 | |||||
| 17 | WP9755546 | Nut, Hidden (Replaces: 9755546) |
|
$ 7.30 | |||||
| 18 | W11256305 | Rack, Sliding (Replaces: W10840297) |
|
$ 365.59 | |||||
| 19 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 92.12 | ||||
| 20 | W10521808 | Cover, Baffle |
|
$ 242.06 | |||||
| 21 | W10739592 | Screw |
|
- | |||||
| 22 | W10850807 | Screw (Replaces: W10720084) |
|
$ 7.77 |
