WOC97ES0ES03 | Leon's : Appliance Model Lookup

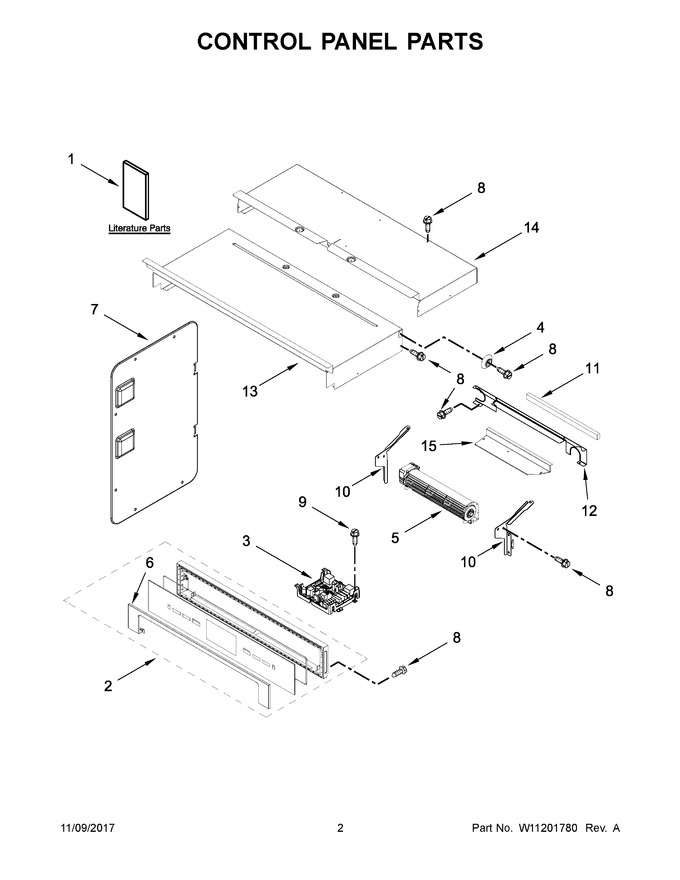

Diagram #	Part Number	Description	Availability	Ships	Price
1	W10777365	Guide, Use & Care	Appelez-nous	-
2	W10756534	Assembly, Control Panel (includes Overlay) (stainless)	Appelez-nous	-
3	W11179310	Control (with Power Supply) (Replaces: W11040195)		Immediately	$ 456.49
4	W10618105	Spacer, Lateral	Appelez-nous	-
5	W11713858	Blower (Replaces: W10669823)		Immediately	$ 348.59
6	W10601418	Skin, Control Panel (stainless)	Appelez-nous	-
7	W10655467	Chassis, Combo Side			$ 83.02
8	WP90767	Screw (Replaces: 7101P426-60)		Immediately	$ 8.25
9	WP7101P434-60	Screw (Replaces: 7101P434-60)			$ 7.30
10	W10655463	Bracket, Blower (left)	Appelez-nous	-
11	W10491987	Block, Foam (Replaces: 4451758)		Immediately	$ 8.14
12	W10618126	Chassis, Back Divider	Appelez-nous	-
13	W10318158	Chassis, Cover Top Front 30	Appelez-nous	-
14	W10588732	Chassis, Cover Top Back 30			$ 225.86
15	W10681157	Cover, Combo Blower	Appelez-nous	-
10A	W10655462	Bracket, Blower (right)	Appelez-nous	-
1A	W10777366	Use And Care Guide (microwave)	Appelez-nous	-
1B	W10777400	Installation Instructions	Appelez-nous	-
1C	W11041087	Sheet, Tech	Appelez-nous	-
NI	16515	Clip, Harness (Replaces: 313438)			$ 20.53
NI	W10603949	Harness, Communication			$ 158.07
NI	W11356977	Harness, Cable Tree Assembly (Replaces: W10889134)			$ 85.07
NI	W10789995	Harness, Signal			$ 86.96
NI	W10874060	Harness, Inverter			$ 148.71
NI	W11356954	Harness, Fan & Turntable (Replaces: W10874059)			$ 148.75
NI	W11033089	Harness, Main			$ 117.90
NI	N/P	Following Parts Not Illustrated	Appelez-nous	-
NI	W10760039	Bag, Hardware (Replaces: W10431303)			$ 12.17
NI	W11226264	Strap, Ground (Replaces: W10392129)	Appelez-nous	-
NI	4450800	Screw, Grounding			$ 13.47
NI	4448664	Clamp, Conduit			$ 21.41
NI	W11132989	Harness, Door Latch (Replaces: W10775068)			$ 118.98
