Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11684512 Screw   (Replaces: 7101P060-60) Special Order $ 14.10

2 4454949 Holder, Fuse Special Order $ 90.70

3 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 7.82

4 W11819303 Cover, Connector   (Replaces: 8285593) Appelez-nous -
5 W10360516 Rail, Side (left) Special Order $ 80.64

6 WPW10017410 Fuse, Time Delay   (Replaces: W10017410) In-Stock Immediately $ 21.17

7 W10519707 Cover, Back Duct Special Order $ 74.08

8 W10655466 Chassis, Combo Side (left) Special Order $ 80.62

9 W10283022 Support, Crossbar Special Order $ 77.45

10 W10360518 Rail, Side (right) Special Order $ 80.64

11 W10283024 Side, Bracket Special Order $ 75.10

8A W10283029 Chassis, Combo Side (right) Special Order $ 81.31


    View Diagram in Separate Window     Print Icon   Print Part List

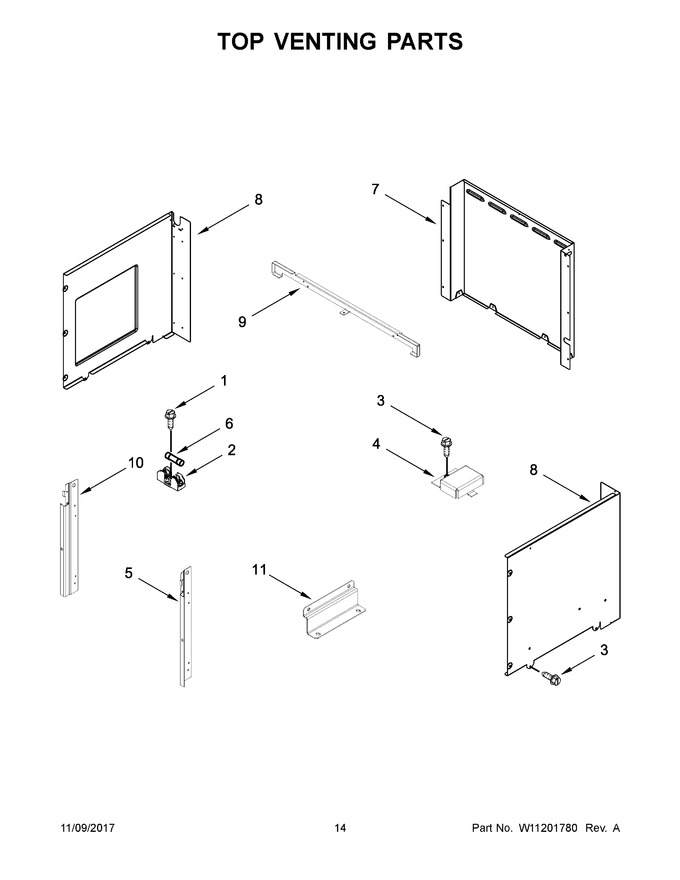

Diagram for WOC97ES0ES03
