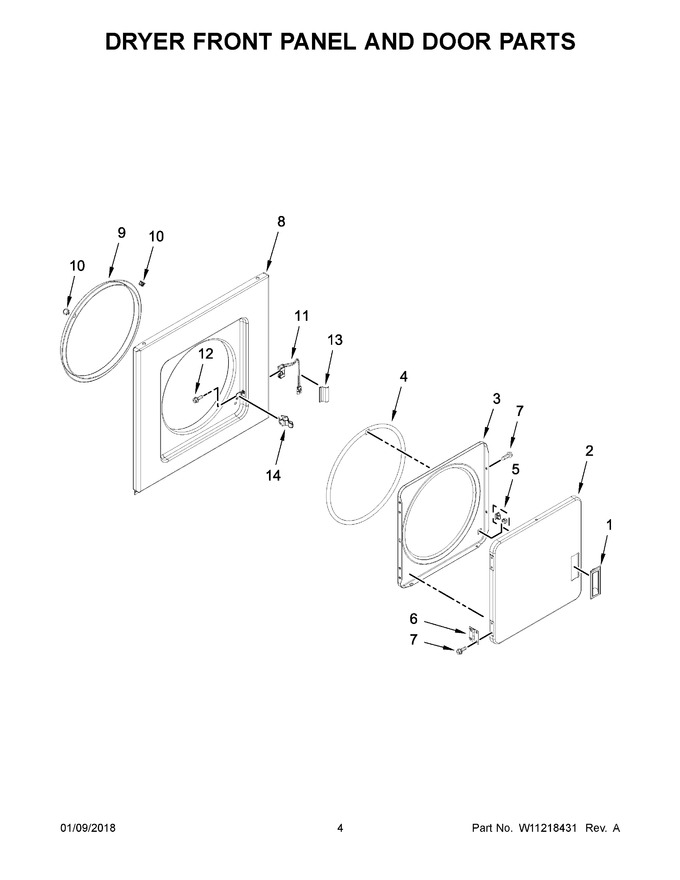

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP686711		Handle, Door			Immediately	$ 8.35
2	WP348205		Door, Outer (white)   (Replaces: 348205)			Immediately	$ 154.76
3	280077		Door, Rear				$ 207.46
4	W11613302		Seal, Door   (Replaces: W10823581)				$ 56.31
5	279570		Assembly, Door Catch			Immediately	$ 8.89
6	WP348023		Hinge And Pin Assembly				$ 9.32
7	WP488627		Screw   (Replaces: 342055)				$ 8.11
8	285314		Panel, Front				$ 310.75
9	279264		Seal And Bearing Assembly			Immediately	$ 85.45
10	279220		Clip, Felt Pad				$ 23.55
11	WP3406108		Switch, Door			Immediately	$ 43.28
12	WP3395530		Screw				$ 8.57
13	686770		Protector Support		Appelez-nous	-
14	279570		Strike, Door			Immediately	$ 8.89

    View Diagram in Separate Window       Print Part List
