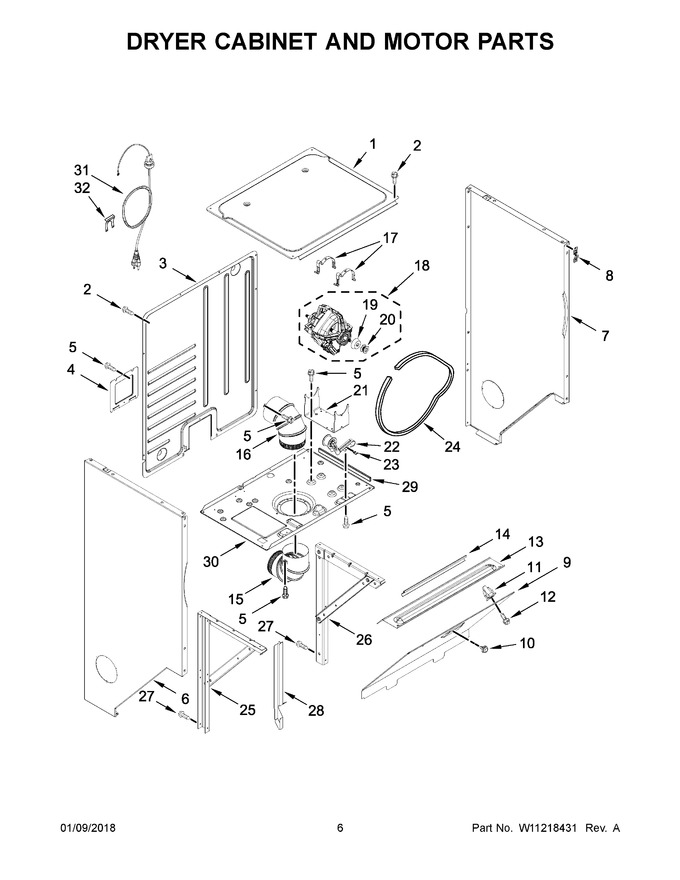

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP692641 | Top, Dryer |
|
$ 270.51 | |||||
| 2 | 5303010202 | Screw |
|
$ 5.15 | |||||
| 3 | W11134947 | Panel, Rear |
|
- | |||||
| 4 | WP3394228 | Cover, Terminal Block |
|
$ 73.50 | |||||
| 5 | WP339631 | Screw |
|
- | |||||
| 6 | WP3402293 | Panel, Side (left Hand) |
|
$ 365.33 | |||||
| 7 | WP3402287 | Panel, Side (right Hand) |
|
$ 366.40 | |||||
| 8 | W10854425 | Clip, Front Panel |
|
Immediately | $ 16.34 | ||||
| 9 | W11205493 | Panel, Transition |
|
$ 316.31 | |||||
| 10 | 8572266 | Bumper, Door |
|
Immediately | $ 11.73 | ||||
| 11 | WP692400 | Screw Grommet |
|
Immediately | $ 8.02 | ||||
| 12 | WP693304 | Screw |
|
$ 8.44 | |||||
| 13 | W11174022 | Panel, Closure (Replaces: W11089868) |
|
- | |||||
| 14 | 686770 | Protector Support |
|
- | |||||
| 15 | 3399603 | Elbow, Lower |
|
- | |||||
| 16 | WP3399602 | Elbow, Upper |
|
$ 56.52 | |||||
| 17 | WPW10121316 | Clamp, Motor Mount |
|
Immediately | $ 26.96 | ||||
| 18 | WPW10448901 | Motor, Main Drive (60 Hz) |
|
Immediately | $ 343.16 | ||||
| 19 | WP3393657 | Restrainer, Belt |
|
Immediately | $ 139.08 | ||||
| 20 | 8066051 | Pulley, Motor |
|
$ 118.78 | |||||
| 21 | 696541 | Base, Motor |
|
$ 97.86 | |||||
| 22 | WP691366 | Idler Assembly |
|
Immediately | $ 22.47 | ||||
| 23 | WP692771 | Nut, Idler Bracket To Base |
|
$ 8.35 | |||||
| 24 | 3394652 | Belt, Drive |
|
Immediately | $ 52.32 | ||||
| 25 | W11174025 | Support, Dryer (left Hand) (Replaces: W11050012) |
|
$ 53.47 | |||||
| 26 | W11174024 | Support, Dryer (right Hand) (Replaces: W11050013) |
|
$ 137.11 | |||||
| 27 | W11676450 | Screw (Replaces: 3400000) |
|
$ 14.76 | |||||
| 28 | W11049216 | Bracket, Rear Harness Cover |
|
- | |||||
| 29 | W11174026 | Pad (Replaces: W10560609) |
|
- | |||||
| 30 | 3399632 | Base, Dryer |
|
$ 194.21 | |||||
| 31 | W11733931 | Cord, Power (Replaces: W11177750) |
|
$ 132.84 | |||||
| 32 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 7.77 |
