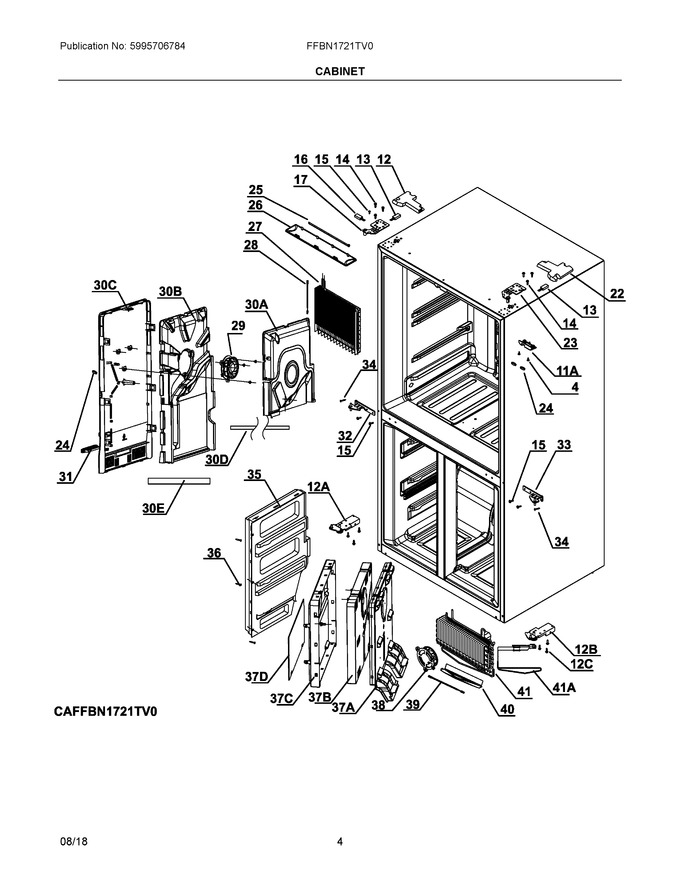

01 - Cover Sheet


02 - Doors


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5304513738		Screw, (4)		Appelez-nous	-
12	5304513754		Cover, Hinge, Lh Upper				$ 56.70
13	5304513757		Switch, Magnet Control				$ 45.50
14	5304513758		Screw, Tapping-locking, (10)		Appelez-nous	-
15	5304492671		Screw, Assembly, (5)		Appelez-nous	-
16	5304513759		Sensor, Humidity				$ 100.86
17	5304513760		Hinge, Lh Upper, Refrigerator				$ 39.69
22	5304513761		Cover, Hinge, Rh Upper		Appelez-nous	-
23	5304513762		Hinge, Rh Upper, Refrigerator				$ 39.69
24	5304513763		Cap, Screw, (3)				$ 7.40
25	5304513764		Lamp, Led			Immediately	$ 52.23
26	5304513765		Cover, Led Lamp				$ 29.78
27	5304513766		Evaporator, Refrigerator, Vertical Fin				$ 137.26
28	5304513767		Sensor, Temperature			Immediately	$ 39.44
29	5304513768		Motor, Fan, Refrigerator			Immediately	$ 149.31
31	5304513774		Deodorizer, Assembly				$ 111.99
32	5304513775		Hinge, Lh Middle, Doors				$ 41.81
33	5304513776		Hinge, Rh Middle, Doors				$ 51.07
34	5304513777		Screw, Middle Hinge, (2)		Appelez-nous	-
35	5304513778		Divider Assembly, Freezer Compt.		Appelez-nous	-
36	5304512553		Screw, Tapping, (8)		Appelez-nous	-
38	5304513783		Motor, Fan, Freezer			Immediately	$ 164.02
39	5304513784		Sensor, Temperature				$ 34.89
40	5304513785		Drip Tray, Defrost, Freezer		Appelez-nous	-
41	5304513786		Evaporator, Freezer				$ 239.64
11A	5304513753		Guide, Mullion		Appelez-nous	-
12A	5304513755		Hinge, Lh Lower, Freezer				$ 46.78
12B	5304513756		Hinge, Rh Lower, Freezer				$ 65.68
12C	5304492672		Screw, Tapping, (6)				$ 7.09
30A	5304513769		Air Duct, Back Plate, Refrigerator		Appelez-nous	-
30B	5304522460		Insulation, Air Duct, Refrigerator   (Replaces: 5304513770)				$ 255.56
30C	5304513771		Air Duct, Front Plate, Refrigerator		Appelez-nous	-
30D	5304513772		Gasket, Air Duct, Strip				$ 13.74
30E	5304503932		Foil Tape, Air Duct, Aluminum   (Replaces: 5304513773)				$ 55.99
37A	5304513779		Air Duct, Front Plate, Freezer		Appelez-nous	-
37B	5304513780		Insulation, Air Duct, Freezer		Appelez-nous	-
37C	5304513781		Air Duct, Back Plate, Freezer		Appelez-nous	-
37D	5304513782		Foil Sponge, Aluminum, Freezer Duct				$ 34.31
41A	5304513787		Heater, Defrost, Freezer, W/dfrst Sensor				$ 195.66
NIA	5304515161		Defrost Sensor, Thermistor			Immediately	$ 16.99
