01 - Cover Sheet


02 - Doors


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Diagram

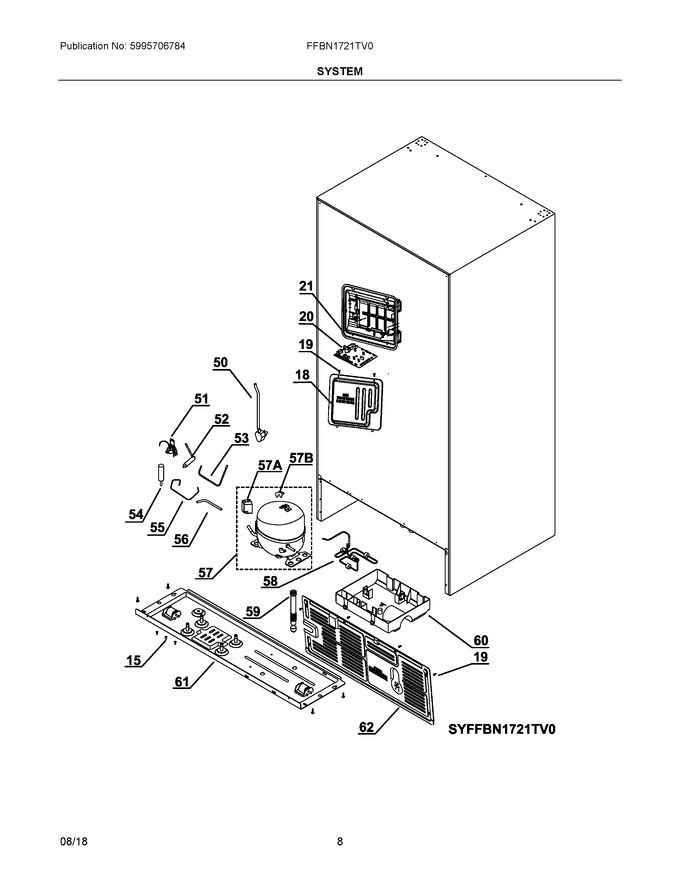

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5304492671		Screw, Assembly, (5)		Appelez-nous	-
18	5304513795		Cover, Control Box		Appelez-nous	-
19	5304513796		Screw, Tapping, (20)		Appelez-nous	-
20	5304513797		Board Assembly, Main Control			Immediately	$ 380.95
21	5304513798		Box, Mounting, Main Control		Appelez-nous	-
50	5304513799		Cord, Power, Electrical				$ 84.83
51	5304513800		Valve, Exchange, Electric				$ 259.97
52	5304513801		Drier, Filter			Immediately	$ 59.28
53	5304513802		Suction Tube, Connection				$ 34.13
54	5304513803		Capacitor		Appelez-nous	-
55	5304513804		Tube, Connector				$ 40.19
56	5304513805		Tube, Processing				$ 19.13
57	5304513806		Compressor, Fixed Speed, W/electricals			Immediately	$ 560.56
58	5304513807		Tubing, Hot Gas, Drain Tray			Immediately	$ 87.97
59	5304513808		Tube, Drain				$ 29.06
60	5304513809		Tray, Drain				$ 59.54
61	5304513810		Base Assembly, Conpressor Mtg.		Appelez-nous	-
62	5304513811		Cover, Machine Compt.		Appelez-nous	-
57A	5304515286		Cover, Relay/overload				$ 83.06
57B	5304515287		Relay/overload, Assembly				$ 158.66

    View Diagram in Separate Window       Print Part List
