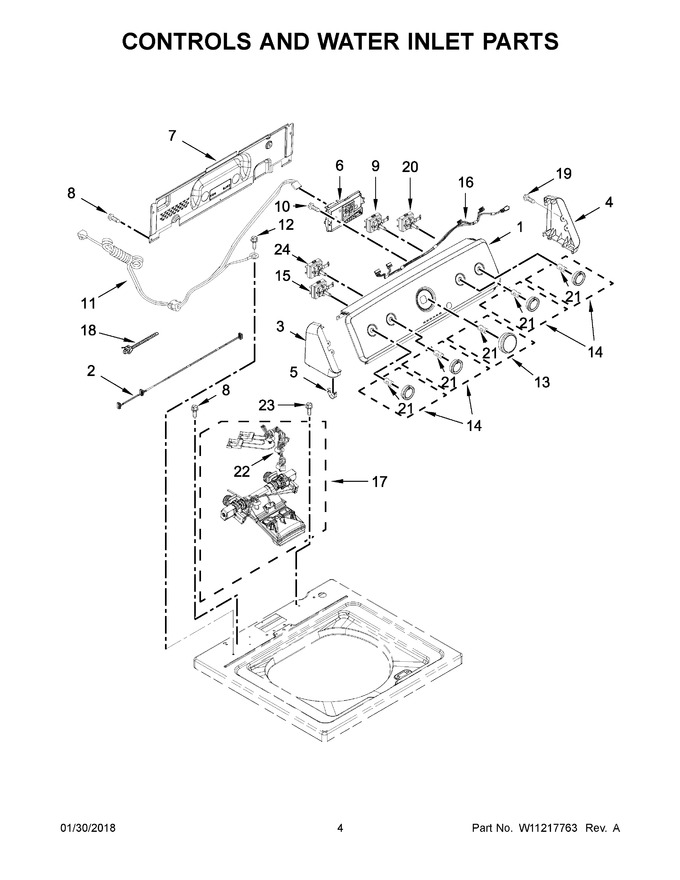

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11236321		Panel, Console   (Replaces: W11158226)				$ 543.59
2	W10694669		Harness, Jumper				$ 76.59
3	WPW10193824		End Cap (left) (white)   (Replaces: W10193824)				$ 66.95
4	WPW10193821		End Cap (right) (white)   (Replaces: W10193821)				$ 67.25
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
6	W11218739		Control Unit Assembly, Machine And Motor   (Replaces: W11171171)			Immediately	$ 342.25
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 324.39
8	WP489069		Screw			Immediately	$ 7.56
9	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 171.42
10	WP90767		Screw			Immediately	$ 7.43
11	W10877409		Cord, Power   (Replaces: W10737739)				$ 117.00
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
13	W11837899		Assembly, Timer Knob (grey)   (Replaces: W10558463)			Immediately	$ 16.95
14	W11837893		Assembly, Control Knob (grey)   (Replaces: W10562155)				$ 16.95
15	WPW10285517		Switch, Rotary Encoder (3 Position)   (Replaces: W10285517)				$ 122.27
16	W10694685		Harness, Upper				$ 171.07
17	W11210459		Inlet Assembly, Water   (Replaces: W11025984)			Immediately	$ 94.50
18	W10339680		Cable Tie		Appelez-nous	-
19	W11693756		Screw   (Replaces: 359625)			Immediately	$ 13.28
20	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 163.89
21	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 7.38
22	W10868094		Harness, Valve				$ 167.50
23	WPW10213953		Screw			Immediately	$ 6.80
24	WPW10285518		Switch, Rotary Encoder (5 Position)   (Replaces: W10285518)			Immediately	$ 142.31
