SELECT A DIAGRAM
New Model Search:

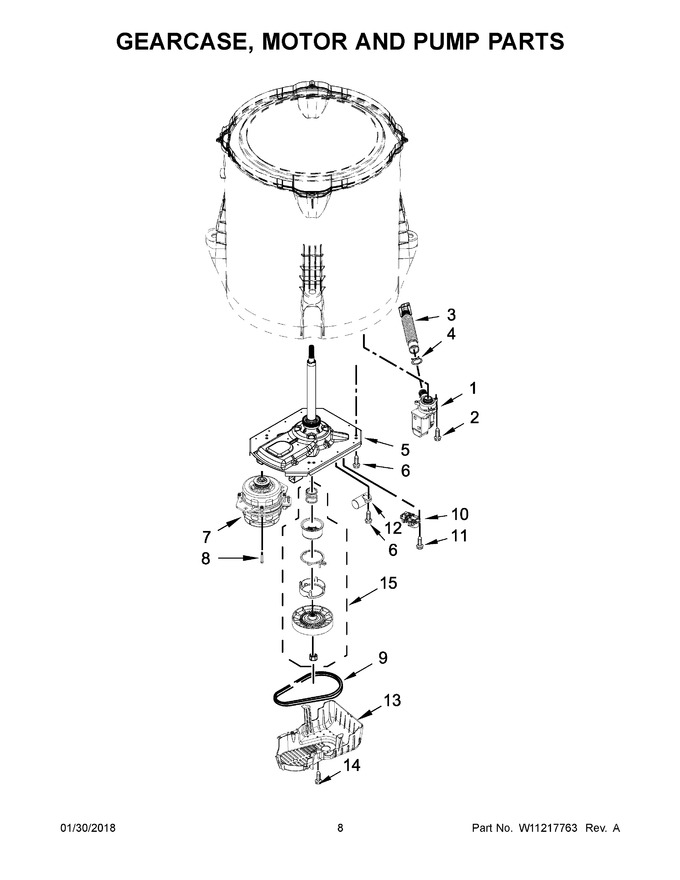

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10919003 | Pump Assembly, Drain (Replaces: W10775446) |
|
Immediately | $ 309.00 | ||||
| 2 | WPW10004910 | Screw |
|
$ 7.55 | |||||
| 3 | W10899966 | Hose, Inner Drain Assembly (Replaces: W10763078) |
|
Immediately | $ 32.20 | ||||
| 4 | WP285655 | Clamp, Hose |
|
Immediately | $ 7.93 | ||||
| 5 | W11454372 | Gearcase Assembly (Replaces: W10870912) |
|
$ 326.03 | |||||
| 6 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 6.80 | ||||
| 7 | W10832724 | Motor, Drive (Replaces: W10677719) |
|
Immediately | $ 338.09 | ||||
| 8 | W11685857 | Screw (Replaces: W10094780) |
|
$ 13.33 | |||||
| 9 | W11239857 | Belt, Drive (Replaces: W10808317) |
|
Immediately | $ 50.76 | ||||
| 10 | W10913953 | Actuator- Shift (Replaces: W10815026) |
|
Immediately | $ 62.81 | ||||
| 11 | W11596033 | Screw (Replaces: 9741052) |
|
$ 12.81 | |||||
| 12 | W11395618 | Capacitor, Motor Run (Replaces: W10866250) |
|
Immediately | $ 109.23 | ||||
| 13 | W11778479 | Shield, Pulley Cover (Replaces: W10550173) |
|
$ 61.35 | |||||
| 14 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 7.59 | ||||
| 15 | W10721967 | Splutch Kit (60hz) |
|
Immediately | $ 53.41 |
