SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel Parts

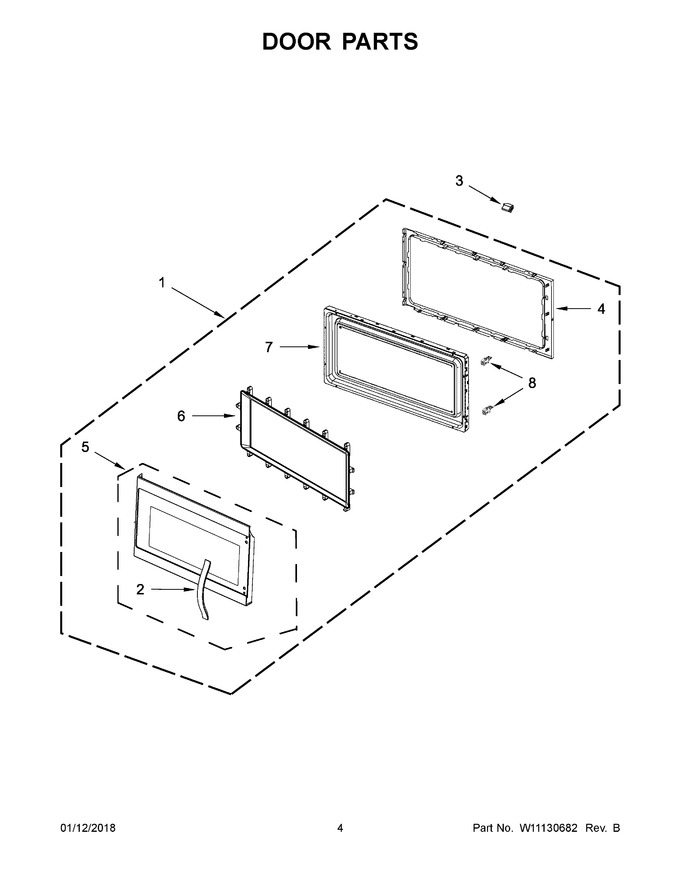

03 - Door Parts


04 - Interior And Ventilation Parts


05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11117584		Door, Complete (white)				$ 331.61
2	W11104884		Handle (white)				$ 158.35
3	W10643975		Stopper, Door (for White Models)				$ 22.71
4	W10647773		Frame, Inner (for White Models)				$ 89.40
5	W11117577		Assembly, Door Frame (white)				$ 349.09
6	W10562560		Plate, Steam Protection (for White Models)		Appelez-nous	-
7	W10893418		Foil, Door (for White Models)				$ 268.17
8	W10740455		Hook, Door			Immediately	$ 56.20
1A	W11117585		Door, Complete (black)				$ 331.61
1B	W11117588		Door, Complete (stainless)				$ 331.61
1C	W11117587		Door, Complete (black Stainless)				$ 331.61
2A	W11305127		Handle (black)   (Replaces: W11104882)				$ 167.43
2B	W11102990		Handle (stainless)   (Replaces: W11051568)			Immediately	$ 160.65
2C	W11102989		Handle (black Stainless)				$ 160.65
3A	W10643974		Stopper, Door (black, Stainless, & Black Stainless)				$ 22.65
4A	W10647772		Frame, Inner (black, Stainless, & Black Stainless)				$ 100.31
5A	W11117581		Assembly, Door Frame (black)		Appelez-nous	-
5B	W11117583		Assembly, Door Frame (stainless)				$ 337.29
5C	W11117575		Assembly, Door Frame (black Stainless)				$ 337.29
6A	W10514243		Plate, Steam Protection (black, Stainless, & Black Stainless)				$ 79.07
7A	W10893422		Foil, Door (black, Stainless, & Black Stainless)				$ 266.28
