New Model Search:

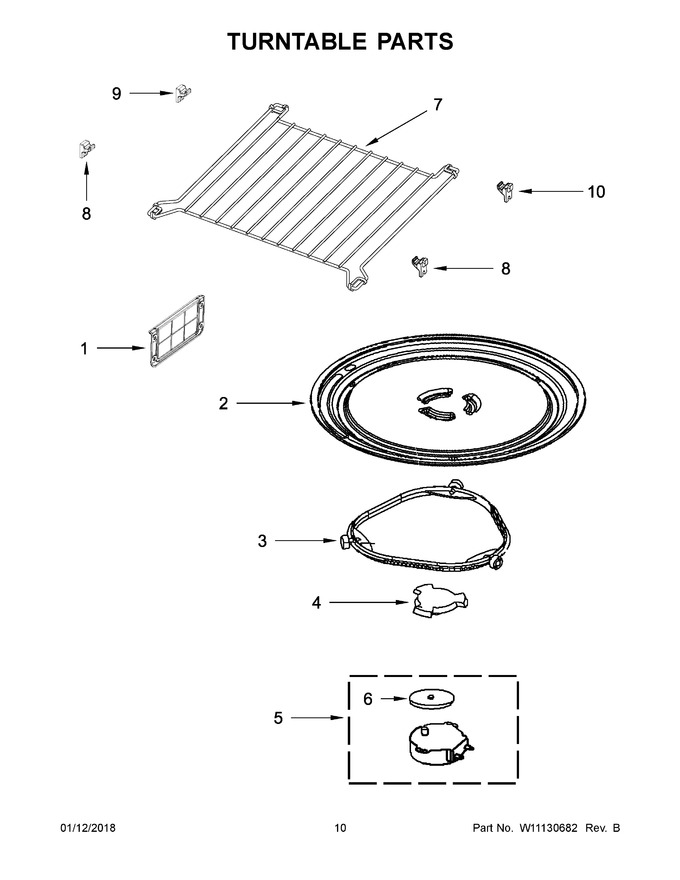

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10533497 | Cover, Waveguide |
|
Immediately | $ 18.96 | ||||
| 2 | W11402532 | Turntable (Replaces: W10531726) |
|
Immediately | $ 65.40 | ||||
| 3 | WPW10679311 | Ring, Turntable (Replaces: W10679311) |
|
Immediately | $ 20.29 | ||||
| 4 | W10337248 | Driver, Turntable |
|
Immediately | $ 7.83 | ||||
| 5 | W10642989 | Motor, Turntable |
|
Immediately | $ 199.95 | ||||
| 6 | 8184109 | Seal, Waterproof |
|
$ 7.30 | |||||
| 7 | W10803366 | Rack, Microwave (Replaces: W10637159) |
|
$ 30.40 | |||||
| 8 | W10740485 | Hook, Microwave (left Front & Right Front) |
|
$ 22.37 | |||||
| 9 | W10749119 | Hook, Microwave (left Rear) |
|
$ 24.52 | |||||
| 10 | W10749120 | Hook, Microwave (right Rear) |
|
$ 24.51 |
