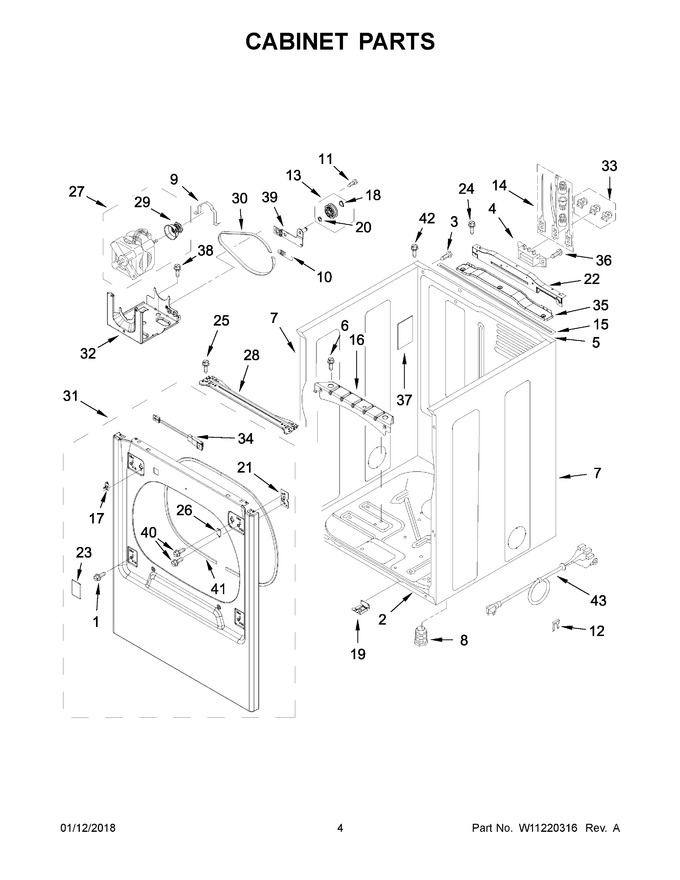

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 2 | W10613683 | Base, Cabinet |
|
$ 201.57 | |||||
| 3 | W10891954 | Screw (Replaces: 8281212) |
|
- | |||||
| 4 | WP3397659 | Block, Terminal |
|
$ 24.17 | |||||
| 5 | W10824895 | Panel, Rear |
|
$ 311.10 | |||||
| 6 | WP693995 | Screw |
|
Immediately | $ 7.55 | ||||
| 7 | W10633648 | Panel, Side (white (without Cutout)) |
|
$ 287.57 | |||||
| 8 | 49621 | Foot, Dryer |
|
Immediately | $ 8.55 | ||||
| 9 | WPW10121316 | Clamp, Motor Mount |
|
Immediately | $ 26.96 | ||||
| 10 | WPW10446781 | Spring, Idler |
|
Immediately | $ 25.80 | ||||
| 11 | WP3389420 | Screw |
|
$ 8.62 | |||||
| 12 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 7.77 | ||||
| 13 | 279640 | Assembly, Pulley |
|
Immediately | $ 32.51 | ||||
| 14 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 15 | W10316616 | Seal, Foam |
|
$ 27.79 | |||||
| 16 | W11282908 | Spacer Bracket, Upper (Replaces: W10632348) |
|
- | |||||
| 17 | W11163826 | Strike (Replaces: W10778071) |
|
$ 26.61 | |||||
| 18 | WPW10512946 | Washer, Tri Ring |
|
Immediately | $ 8.80 | ||||
| 19 | W10632347 | Spacer Bracket, Lower |
|
- | |||||
| 20 | WPW10121334 | Washer (Replaces: W10121334) |
|
Immediately | $ 7.55 | ||||
| 21 | W10596959 | Bracket, Hinge |
|
$ 20.00 | |||||
| 22 | W10622391 | Bracket, Rear Panel Upper |
|
- | |||||
| 23 | W10590953 | Plug, Hinge (white) |
|
- | |||||
| 24 | W10916641 | Screw |
|
- | |||||
| 25 | 6-920119 | Screw |
|
- | |||||
| 26 | WPW10111888 | Plug, Strike (Replaces: W10111888) |
|
$ 29.69 | |||||
| 27 | W11105178 | Assembly, Motor (Replaces: W10806759) |
|
Immediately | $ 335.25 | ||||
| 28 | W10722502 | Brace, Cab And Seal Assembly |
|
- | |||||
| 29 | W11568637 | Pulley, Motor (Replaces: W10669447) |
|
$ 86.58 | |||||
| 30 | W10849499 | Belt, Drive (Replaces: W10610882) |
|
Immediately | $ 57.86 | ||||
| 31 | W10875869 | Panel, Front (white) (Replaces: W10861063) |
|
$ 320.59 | |||||
| 32 | W10578053 | Bracket, Motor Mounting |
|
$ 92.22 | |||||
| 33 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 34 | W11036551 | Switch, Door (Replaces: W10459026) |
|
Immediately | $ 74.25 | ||||
| 35 | W10651902 | Bulkhead Bracket, Rear Panel |
|
- | |||||
| 36 | WP339631 | Screw |
|
- | |||||
| 37 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 23.76 | |||||
| 38 | 5303010202 | Screw |
|
$ 5.15 | |||||
| 39 | W10837240 | Bracket, Idler (Replaces: 3388674) |
|
Immediately | $ 35.78 | ||||
| 40 | W10718190 | Screw |
|
- | |||||
| 41 | WP3387242 | Seal, Front Panel |
|
Immediately | $ 31.42 | ||||
| 42 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 43 | W11710615 | Cord, Power (Replaces: W10712173) |
|
Immediately | $ 82.45 | ||||
| NI | W10704365 | Dryer Exhaust Kit Not Included, Kit, 4-way Vent |
|
$ 134.80 | |||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) |
|
Immediately | $ 8.55 |
