View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

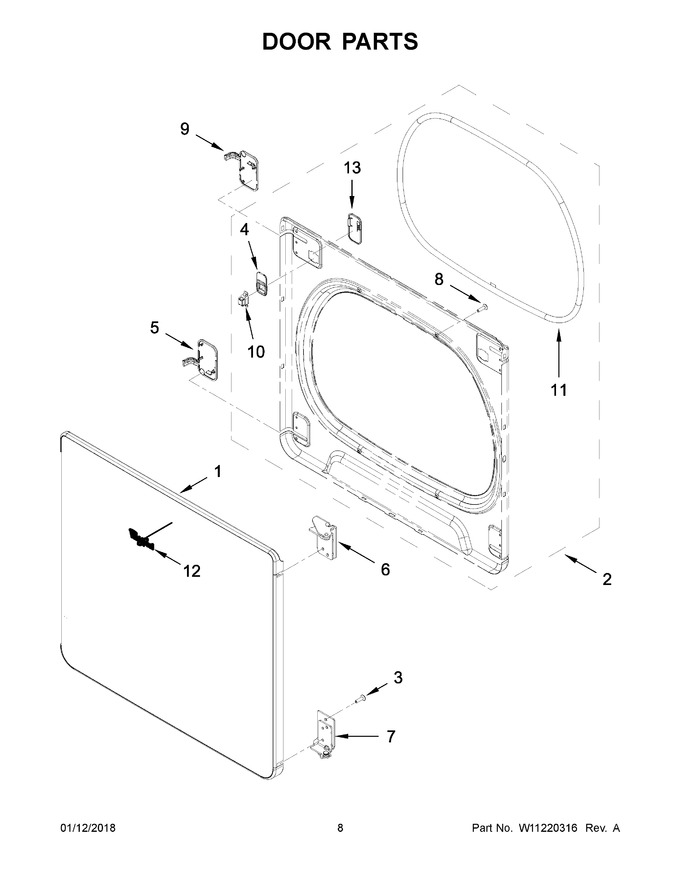

01 - Cover Sheet
02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10614976 | Door, Outer (black) |
|
$ 351.33 | |||||
| 2 | W11133036 | Assembly, Inner Door (white) (Replaces: W10915194) |
|
$ 235.51 | |||||
| 3 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 6.80 | ||||
| 4 | W11103932 | Bezel, Door Catch (white) (Replaces: W10631401) |
|
$ 25.46 | |||||
| 5 | W10631396 | Hinge Cover, Bottom (white) |
|
- | |||||
| 6 | W10850024 | Door, Hinge (upper) (Replaces: W10783754) |
|
$ 76.98 | |||||
| 7 | W10850044 | Door, Hinge (lower) (Replaces: W10783755) |
|
$ 76.88 | |||||
| 8 | WP488627 | Screw (Replaces: 342055) |
|
$ 7.30 | |||||
| 9 | W10631395 | Hinge Cover, Top (white) |
|
- | |||||
| 10 | W11429587 | Assembly, Door Catch (Replaces: W10610880) |
|
Immediately | $ 23.90 | ||||
| 11 | W10763835 | Seal, Door |
|
Immediately | $ 116.81 | ||||
| 12 | WPW10393264 | Badge (grey) (Replaces: W10393264) |
|
$ 60.97 | |||||
| 13 | W10631410 | Cover, Door Catch (white) |
|
- |
