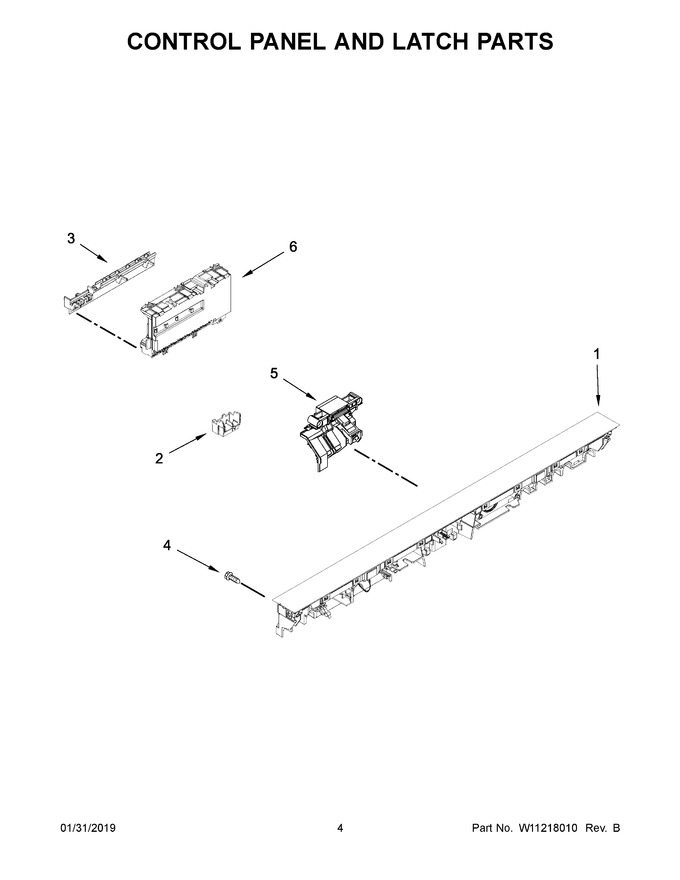

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11224299 | Console Cap (black) (Replaces: W11090071) |
|
$ 224.81 | |||||
| 2 | W11305293 | Box, Connector (Replaces: W10825638) |
|
Immediately | $ 236.98 | ||||
| 3 | W11305293 | Brace, Connector (Replaces: W10825369) |
|
Immediately | $ 236.98 | ||||
| 4 | WPW10348408 | Screw (Replaces: W10348408) |
|
Immediately | $ 7.55 | ||||
| 5 | WPW10653840 | Latch Assembly (includes Switch) (Replaces: W10653840) |
|
Immediately | $ 34.18 | ||||
| 6 | W11305303 | Contol, Electronic (Replaces: W11227795) |
|
Immediately | $ 238.10 | ||||
| 1A | W11223386 | Console Cap (white) (Replaces: W11090072) |
|
$ 362.64 |
