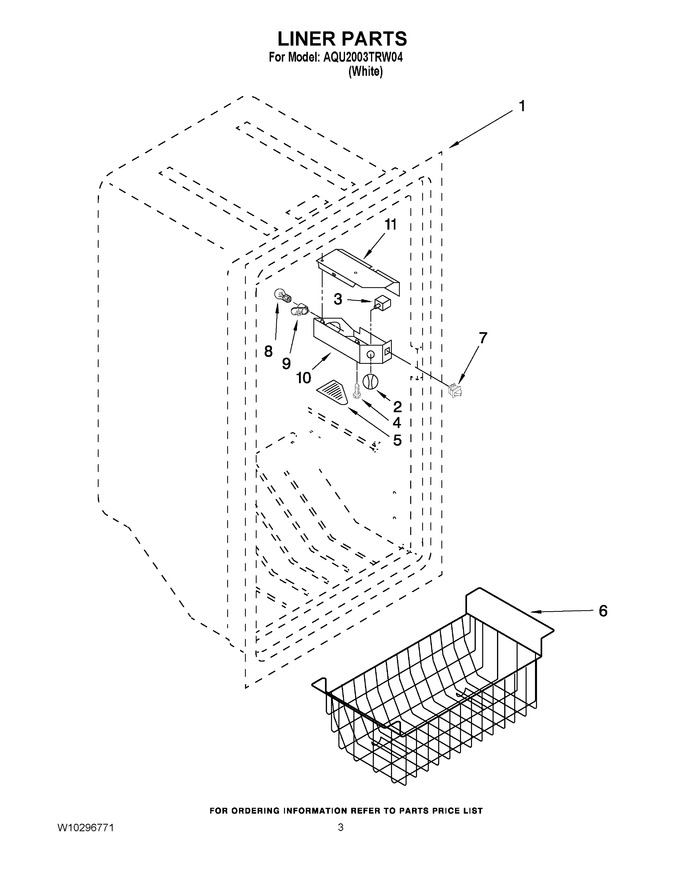

02 - Liner Parts
03 - Unit Parts
04 - Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 3-82390-001 | Knob, Control (Replaces: 8210348) |
|
$ 30.10 | |||||
| 3 | WP4-83053-001 | Thermostat (Replaces: 8210395) |
|
$ 254.87 | |||||
| 4 | W10709795 | Screw (Replaces: 4390511) |
|
$ 13.79 | |||||
| 5 | 8210349 | Lens Light |
|
$ 33.01 | |||||
| 6 | 4390698 | Basket, Wire |
|
- | |||||
| 7 | W11384469 | Switch, Light (Replaces: 4390513) |
|
Immediately | $ 39.09 | ||||
| 8 | W11679940 | Bulb, Light (Replaces: 4390465) |
|
Immediately | $ 11.30 | ||||
| 9 | WP3-82393-001 | Socket, Light (Replaces: 8210350) |
|
$ 112.73 | |||||
| 10 | 8210406 | Box, Control |
|
- | |||||
| 11 | 8210351 | Shield, Light |
|
$ 42.03 |
