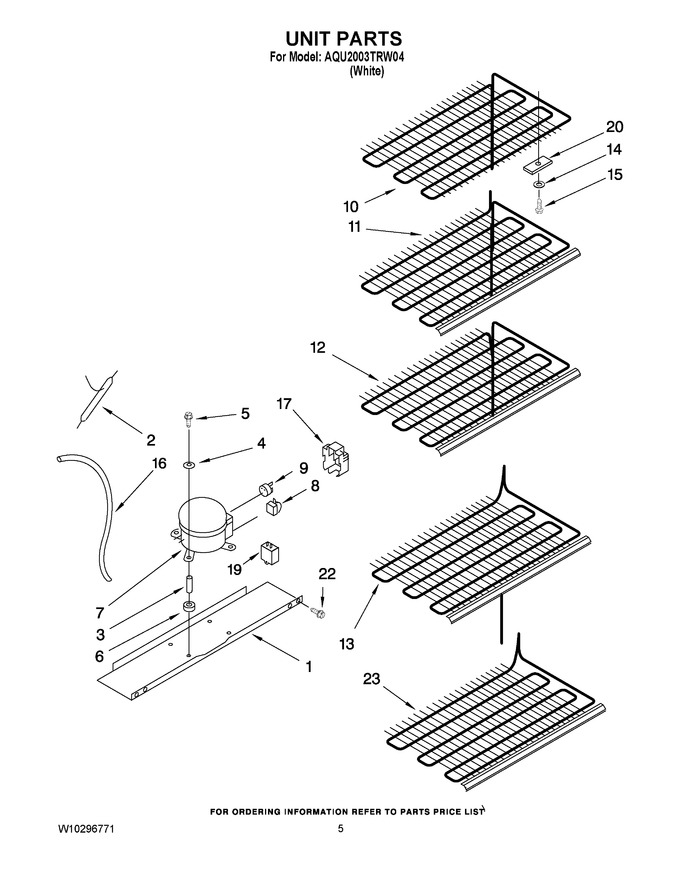

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts
03 - Unit Parts
04 - Door Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10260291 | Pan, Compressor |
|
- | |||||
| 2 | 4001 | Drier (Replaces: 4357299) |
|
Immediately | $ 10.71 | ||||
| 3 | 4356846 | Sleeve |
|
$ 15.00 | |||||
| 4 | 4356847 | Washer |
|
- | |||||
| 5 | 8210220 | Bolt, Compressor |
|
- | |||||
| 6 | 4356335 | Grommet |
|
- | |||||
| 7 | W10309994 | Compressor (Replaces: W10296788) |
|
Immediately | $ 643.55 | ||||
| 8 | WPW10189190 | Relay (Replaces: 4357156) |
|
Immediately | $ 131.29 | ||||
| 9 | WP2183456 | Overload (Replaces: W10296789) |
|
$ 147.19 | |||||
| 10 | W10294512 | Evaporator, Top |
|
- | |||||
| 11 | W10294514 | Evaporator, Shelf |
|
- | |||||
| 12 | W10294515 | Evaporator, Shelf |
|
- | |||||
| 13 | W10294516 | Evaporator, Shelf |
|
- | |||||
| 14 | 4357057 | Washer |
|
- | |||||
| 15 | WP3-24004-109 | Screw (Replaces: 4357223) |
|
$ 9.14 | |||||
| 16 | 4390809 | Heat Exchanger |
|
- | |||||
| 17 | W10393770 | Cover (Replaces: W10296787) |
|
$ 115.11 | |||||
| 19 | 3-35956-013 | Capacitor (Replaces: 8210224) |
|
$ 121.12 | |||||
| 20 | 4356854 | Clamp |
|
- | |||||
| 22 | WP3-24838-048 | Screw (Replaces: 4357277) |
|
$ 8.33 | |||||
| 23 | W10294518 | Evaporator, Bottom |
|
- | |||||
| NI | N/P | Refrigerant Charge (6.2 Oz. (r-134a)) |
|
- |
