SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Evaporator Area & Rollers


05 - Freezer Door


06 - Interior Cabinet & Freezer Shelving


07 - Optional Ice Maker Kit Ic11b P1328003w


08 - Refrigerator Door


09 - Refrigerator Shelving


10 - Supplimental Information


11 - Wiring Information

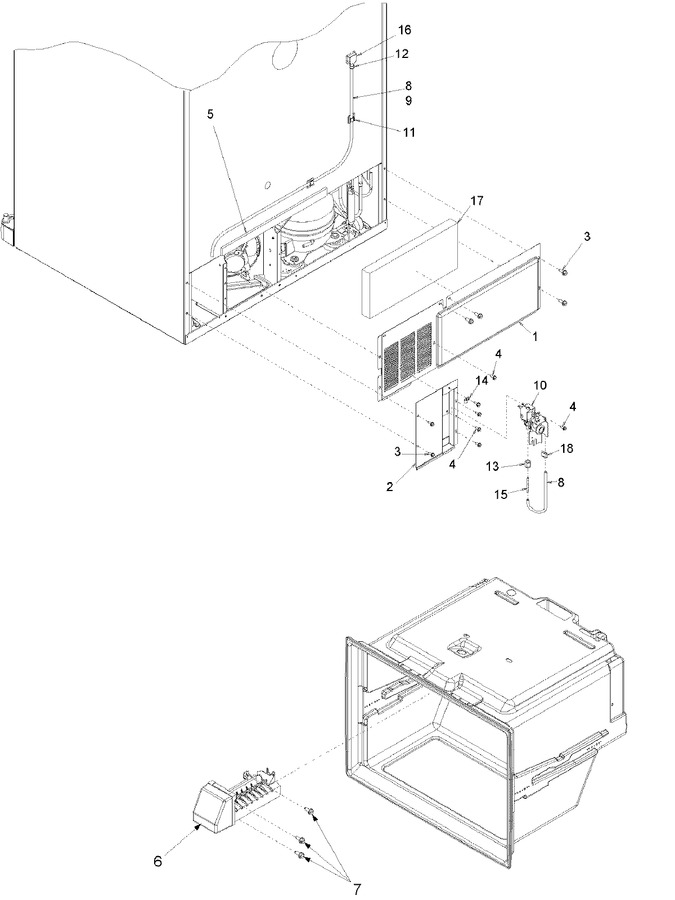

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12575101ED		Back, Mach Comp		Appelez-nous	-
2	67001173		Cover, Water Valve		Appelez-nous	-
3	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30
4	681390		Screw   (Replaces: M0251015)				$ 13.71
5	B5759649		Gasket, Mc Back		Appelez-nous	-
6	D7824706Q		Ice Maker Assy.   (Replaces: 61005508)			Immediately	$ 167.35
7	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
8	W10823511		Tube, Plastic   (Replaces: B5705323)			Immediately	$ 32.41
9	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 8.21
10	WP67003753		Valve-water   (Replaces: 12638801)			Immediately	$ 109.40
11	WPM0104106		Clip   (Replaces: M0104106)				$ 8.17
12	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
13	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
14	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 11.54
15	A1055105		Spring, Anti Kink		Appelez-nous	-
16	W11176463		Elbow, Fill Tube   (Replaces: 10463201)			Immediately	$ 119.86
17	67001725		Fiber, Acoustic		Appelez-nous	-
18	67001258		Retainer, Tube		Appelez-nous	-
NI	WP67006506		Cord, Power   (Replaces: 12583301)				$ 27.74

    View Diagram in Separate Window       Print Part List
