SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Evaporator Area & Rollers


05 - Freezer Door


06 - Interior Cabinet & Freezer Shelving


07 - Optional Ice Maker Kit Ic11b P1328003w


08 - Refrigerator Door


09 - Refrigerator Shelving


10 - Supplimental Information


11 - Wiring Information

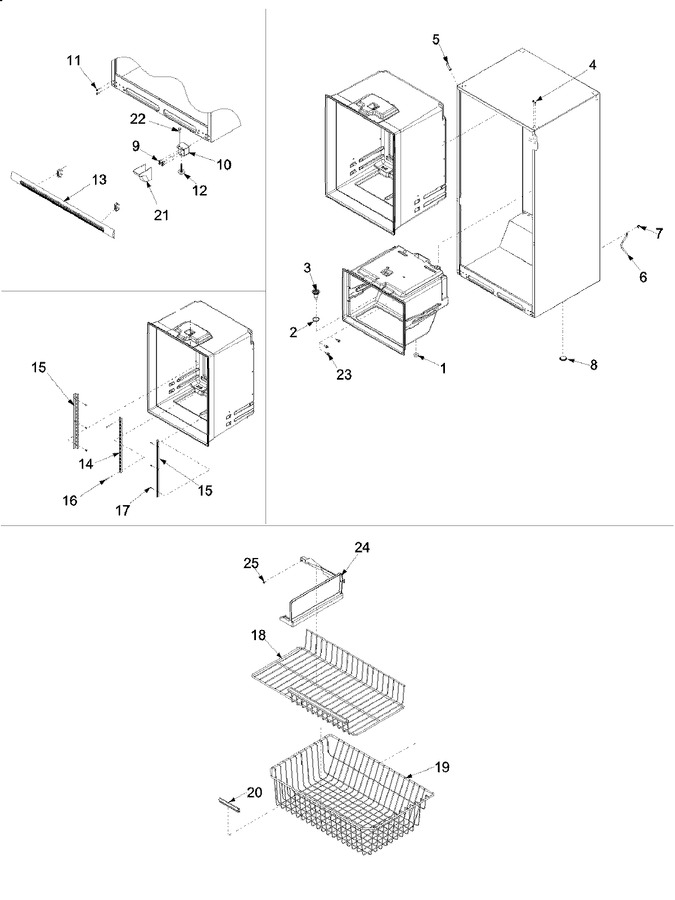

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.41
2	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 10.92
3	W10815413		Funnel, Drain   (Replaces: D7753903)			Immediately	$ 49.05
4	A4539607		Pop Rivet		Appelez-nous	-
5	67003484		Cover, Corner (wht)   (Replaces: 12587702W)				$ 20.40
6	67001066		Tube, Drain				$ 55.82
7	67001067		Clip, Drain Tube				$ 9.20
8	A3076901		Plug-button				$ 5.70
9	WP67006715		Screw, Sm   (Replaces: M0241508)				$ 7.19
10	67001069		Hinge, Bottom E-ct (wht)		Appelez-nous	-
11	WP67006715		Screw   (Replaces: M0233847)				$ 7.19
12	W11177593		Brake, Foot   (Replaces: 10354001)				$ 11.60
13	67002176		Toe Grille Assy (wht)		Appelez-nous	-
14	67001073		Ladder, Center				$ 54.18
15	67001302		Ladder, Sides		Appelez-nous	-
16	W10709795		Screw   (Replaces: M0231425)				$ 13.13
17	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 6.95
18	67001165		Shelf, Glide Fz		Appelez-nous	-
19	WP12754803		Basket, Lower Fz   (Replaces: 67001166)				$ 254.30
20	10508506		Handle, Basket/shelf		Appelez-nous	-
21	12561901W		Cover, Lwr Hinge (wht)				$ 6.37
22	M0310343		Plug, Button (wht)				$ 10.67
23	12991101		Screw, Sm   (Replaces: M0210816)				$ 12.83
24	67001723		Divider, Basket (upper)		Appelez-nous	-
25	67001310		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
