SELECT A DIAGRAM

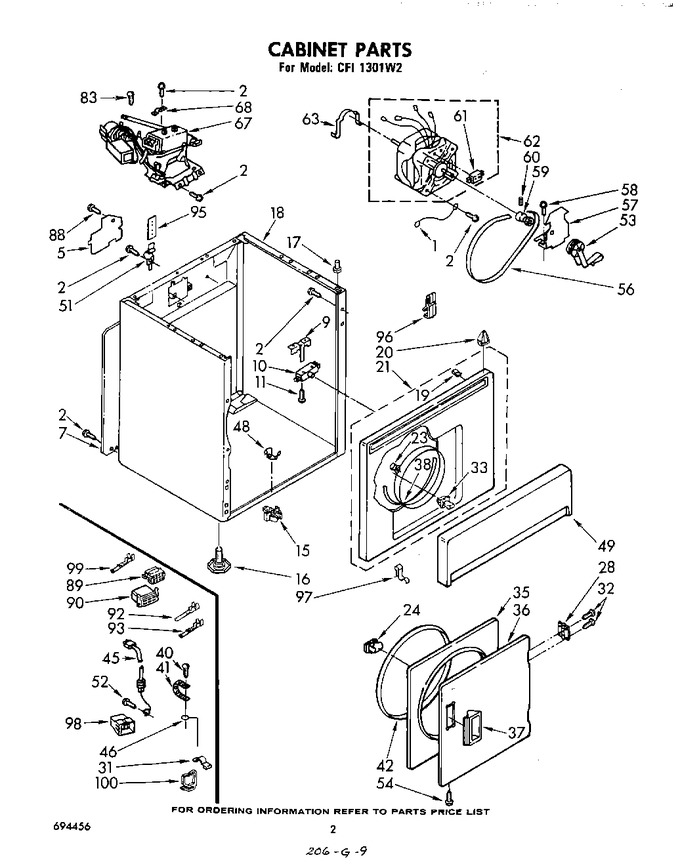

02 - Cabinet


03 - Bulkhead


04 - Top And Console , Literature And Optional


05 - Wiring Harness


06 - 688637 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	690236		Wire, Ground (motor)		Appelez-nous	-
2	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
5	W11736322		Cover, Block   (Replaces: 690893)		Appelez-nous	-
7	347736		Panel, Rear		Appelez-nous	-
9	WP691581		Clip, Door Switch   (Replaces: 295998)			Immediately	$ 8.49
10	W10820036		Switch, Door   (Replaces: 347207)			Immediately	$ 30.50
11	WP98129		Screw, 6-20 X 1-3/8   (Replaces: 98129)				$ 8.18
15	690625		Clip, Toe Panel (2)		Appelez-nous	-
16	49621		Foot, Dryer (4)   (Replaces: 688222)			Immediately	$ 8.55
17	98669		Locator, Top (2)				$ 12.03
18	690848		Cabinet (almond)		Appelez-nous	-
18	690847		Cabinet (white)		Appelez-nous	-
18	690851		Cabinet (golden Harvest)		Appelez-nous	-
18	690850		Cabinet (new Avocado)		Appelez-nous	-
19	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.96
20	WP18776		Lock, Front Top (2)   (Replaces: 18776)			Immediately	$ 13.31
21	693203		Upper Front Panel Assembly (almond)		Appelez-nous	-
21	693205		Upper Front Panel Assembly (new Avocado)		Appelez-nous	-
21	693206		Upper Front Panel Assembly (golden Harvest)		Appelez-nous	-
21	693202		Upper Front Panel Assembly (white)		Appelez-nous	-
23	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 23.55
24	279570		Catch, Door   (Replaces: 690081)			Immediately	$ 8.89
28	WP348023		Hinge & Pin Assembly   (Replaces: 348023)				$ 9.32
31	WP98997		Clip, Harness To Cabinet   (Replaces: 98997)				$ 11.64
32	689791		Screw, Hinge		Appelez-nous	-
33	279570		Strike, Panel   (Replaces: 693717)			Immediately	$ 8.89
35	280077		Door, Rear (white)   (Replaces: 348201)				$ 207.46
35	280077		Door, Rear (golden Harvest)   (Replaces: 689277)				$ 207.46
35	280077		Door, Rear (almond)   (Replaces: 689274)				$ 207.46
35	280077		Door, Rear (new Avocado)   (Replaces: 689276)				$ 207.46
36	689318		Door, Front (new Avocado)		Appelez-nous	-
36	689314		Door, Front (almond)		Appelez-nous	-
36	689319		Door Front (golden Harvest)		Appelez-nous	-
36	WP348205		Door, Front (white)   (Replaces: 348205)			Immediately	$ 154.76
37	689306		Handle, Door (almond)		Appelez-nous	-
37	689583		Handle, Door (new Avocado)		Appelez-nous	-
37	689584		Handle, Door (golden Harvest)		Appelez-nous	-
37	WP686711		Handle, Door (white)   (Replaces: 686715)			Immediately	$ 8.35
38	279264		Seal & Bearing Assembly   (Replaces: 349462)			Immediately	$ 74.52
40	132848		Screw, 10-24 X 1		Appelez-nous	-
41	22965		Strap, Ground		Appelez-nous	-
42	W11613302		Seal, Door   (Replaces: 685763)				$ 56.31
45	W11222083		Cord, Power   (Replaces: 344020)				$ 126.62
46	364089		Wire, Ground		Appelez-nous	-
48	WP297092		Clip, Hinge (2)   (Replaces: 297092)			Immediately	$ 8.95
49	689540		Panel, Toe (new Avocado)		Appelez-nous	-
49	689537		Panel, Toe (almond)		Appelez-nous	-
49	689539		Panel, Toe (golden Harvest)		Appelez-nous	-
49	237035		Panel, Toe (white)		Appelez-nous	-
51	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 8.21
52	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 8.47
53	WP691366		Idler & Pulley Assembly   (Replaces: 691366)			Immediately	$ 22.47
54	WP694091		Screw, Door   (Replaces: 694091)				$ 7.55
56	341241		Belt, Drive   (Replaces: 349533)			Immediately	$ 18.15
57	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 127.65
58	3400500		Bolt, 5/16-18 X 3/4   (Replaces: 172455)			Immediately	$ 14.04
59	W11233559		Pulley, 60 Hz. (includes Illus. 60)   (Replaces: 685011)				$ 119.58
60	690046		Set Screw		Appelez-nous	-
61	279827		Switch, Motor Start (use W/690870 Motor)   (Replaces: 337351)			Immediately	$ 191.95
61	279827		Switch, Motor Start (use W/689788 Motor)   (Replaces: 349588)			Immediately	$ 191.95
62	279827		Motor Assembly, 60 Hz. (alt.)   (Replaces: 690870)			Immediately	$ 191.95
62	279827		Motor Assembly, 60 Hz.   (Replaces: 660199)			Immediately	$ 191.95
62	279827		Motor Assembly 60 Hz. (alternate)   (Replaces: 346744)			Immediately	$ 191.95
62	279827		Motor Assembly 60 Hz. (alt.)   (Replaces: 689788)			Immediately	$ 191.95
63	WP660658		Clamp, Motor (2) (alt.)   (Replaces: 685441)				$ 8.22
63	WP660658		Clamp, Motor (2) (alt.)   (Replaces: 343481)				$ 8.22
63	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 8.22
67	688637		Burner Assembly, 60 Hz. (refer To Page 7 For Further Breakdown)		Appelez-nous	-
68	341029		Clamp, Pipe		Appelez-nous	-
83	WPW10366705		Screw, Burner Mounting   (Replaces: 686953)				$ 7.88
88	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 8.47
89	689552		Plug, Terminal (use W/96413 Terminal)		Appelez-nous	-
90	689553		Cap, Terminal (use W/97452 Terminal)		Appelez-nous	-
92	97452		Terminal		Appelez-nous	-
93	96413		Terminal		Appelez-nous	-
95	18849		Pad, Hinge (2)				$ 21.15
96	689180		Clip, Strain Relief		Appelez-nous	-
97	341776		Clip, Toe Panel Lock		Appelez-nous	-
98	353425		Receptacle, Terminal (use W/94614 Terminal)		Appelez-nous	-
98	353424		Plug, Terminal (use W/94613 Terminal)				$ 18.95
99	94613		Terminal, (male)		Appelez-nous	-
99	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
100	688412		Clip, Harness Retainer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
