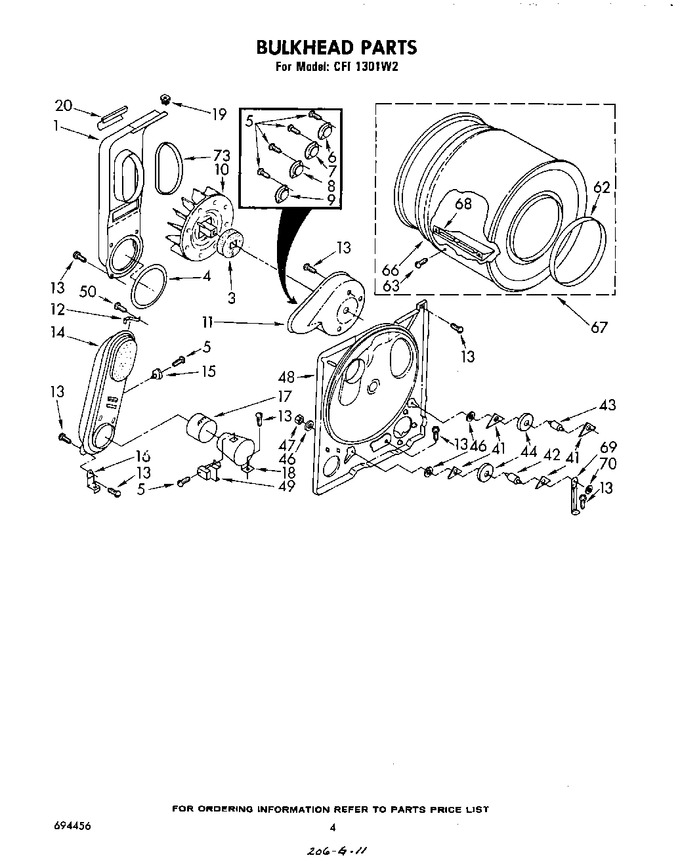

03 - Bulkhead


04 - Top And Console , Literature And Optional


05 - Wiring Harness


06 - 688637 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	279505		Lint Chute, Assembly   (Replaces: 694283)				$ 317.74
3	694630		Seal, Blower		Appelez-nous	-
4	W11415783		Seal   (Replaces: 347139)			Immediately	$ 19.14
5	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 8.25
6	660368		Thermostat, 180~f (82~c)		Appelez-nous	-
6	LS2-175		Thermostat, 180~f (82~c) (alt.)   (Replaces: 341197)			Immediately	$ 27.33
6	295432		Thermostat, 180~f (82~c) (alt.)		Appelez-nous	-
7	WP694674		Thermostat, 155~f (68~c) (alt.)   (Replaces: 299620)			Immediately	$ 50.51
7	LS2-155		Thermostat, 155~f (68~c) (alt.)   (Replaces: 341199)			Immediately	$ 27.33
7	AT022		Thermostat, 155   (Replaces: 660073)			Immediately	$ 35.17
8	WP694674		Thermostat, 140   (Replaces: 660040)			Immediately	$ 50.51
8	LS2-140		Thermostat, 140~f (60.0~c) (alt.)   (Replaces: 342812)			Immediately	$ 27.33
8	LS2-140		Thermostat, 140~f (60.0~c) (alt.)   (Replaces: 342813)			Immediately	$ 27.33
9	LS3-140		Thermostat, Spdt 140~f (60~c)   (Replaces: 344395)				$ 24.35
10	WP694089		Wheel, Blower   (Replaces: 694089)			Immediately	$ 37.66
11	348493		Housing, Blower		Appelez-nous	-
12	279771		Clip, Heater Box To Bulkhead   (Replaces: 337272)				$ 15.05
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
14	279900		Box, Heater   (Replaces: 685458)				$ 361.58
15	341196		Thermostat, 205~f (96~c) (alt.)				$ 33.17
15	660036		Thermostat, 205 F (96 C)		Appelez-nous	-
15	338471		Thermostat, 205~f (96~c) (alt.)		Appelez-nous	-
16	337445		Support		Appelez-nous	-
17	279900		Collar   (Replaces: 337450)				$ 361.58
18	279900		Funnel   (Replaces: 347389)				$ 361.58
19	98460		Nut, Push-in				$ 12.07
20	686770		Support Protector		Appelez-nous	-
41	WPW10512946		Ring, Tri (4)   (Replaces: 690997)			Immediately	$ 8.80
42	WPW10359270		Shaft, L.h.   (Replaces: 347364)			Immediately	$ 72.71
43	WPW10359269		Shaft, R.h.   (Replaces: 339489)			Immediately	$ 47.30
44	349241T		Roller, Support Shaft   (Replaces: 349241)			Immediately	$ 29.53
46	WP348197		Washer (4)   (Replaces: 348197)				$ 7.55
47	120377		Nut, 3/8-16		Appelez-nous	-
48	685769		Bulkhead		Appelez-nous	-
49	WP338906		Sensor, Flame   (Replaces: 338906)			Immediately	$ 51.91
50	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 8.47
62	WP3394508		Bearing, Ring   (Replaces: 297936)				$ 131.86
63	690372		Screw, 11-16 X 7/8 (3)		Appelez-nous	-
66	239087		Seal, Rear   (Replaces: 337449)			Immediately	$ 62.78
67	3396775		Drum Assembly   (Replaces: 337928)				$ 353.03
68	WP342847		Baffle, Drum   (Replaces: 342847)				$ 154.33
69	348945		Bracket		Appelez-nous	-
70	WP90296		Retainer   (Replaces: 90296)				$ 8.24
73	WP339956		Seal   (Replaces: 339956)			Immediately	$ 9.06
